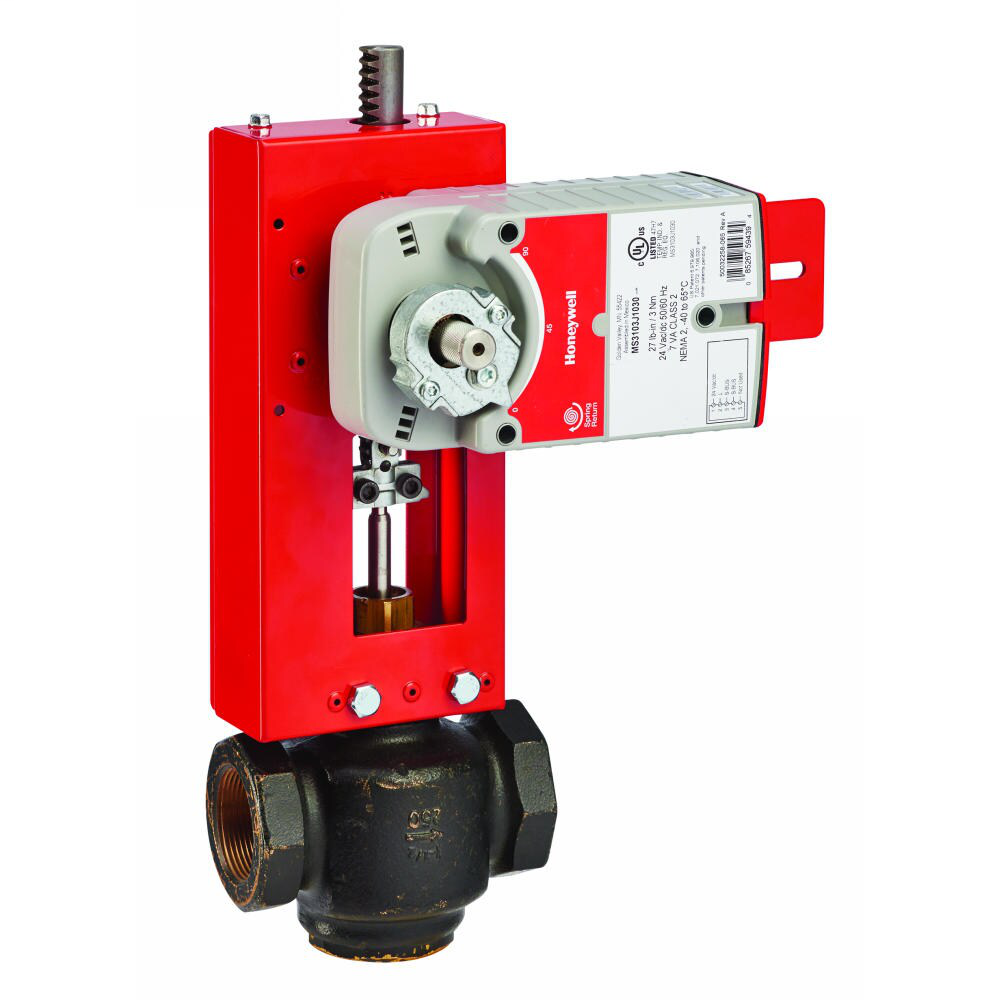

Honeywell MS3103J1030/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Quality and experience are what make Honeywell's actuators and motors the top performers in the HVAC industry. If you need an actuator with lasting value or a motor with reliable performance and trouble-free operation, specify Honeywell. The Honeywell actuator products make precision easy with self-centering shaft adaptors, detachable access covers and universal signal mode adaptors.Rotary Actuators, DAMPER ACTUATOR
Honeywell MS3103J1030/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Angle of Rotation
- 95 °
- Application
- HVAC
- Built In Rotation Limiter
- Yes
- Compatible with External Auxiliary Switches
- No
- Connection Type
- Screw terminals
- Control Signal
- Sylk Enabled
- Damper Compatibility
- Direct Mount
- Driving Noise Rating
- 40 (db(A) @ 1m)
- Driving Power Consumption
- 6 VA
- Feedback Included
- Yes
- Fire & Smoke Rating
- No
- For Use With
- Sylk Enabled controller ; Valves and dampers (with suitable linkage)
- Holding Noise Rating
- 20 (db(A) @ 1m)
- Housing Material
- Plenum rated plastic
- Includes
- Mounting bracket ; Self-centering shaft adapter
- IP Rating
- IP54
- Manual Override Included
- No
- Maximum Operating Ambient Temperature
- 149 °F ; 65 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Return Timing
- 25 s
- Maximum Shaft Diameter
- 0.625 in round ; 0.5 in square
- Maximum Shipping & Storage Temperature
- 150 °F ; 65 °C
- Minimum Operating Ambient Temperature
- -40 °F ; -40 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Shaft Diameter
- 0.375 in round ; 0.25 in square
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Mounting Style
- Direct Coupled
- NEMA Rating
- NEMA 2
- Number of End Switches
- 0
- Overall Depth
- 3.15625 in ; 80 mm
- Overall Height
- 7.5 in ; 177 mm
- Overall Width
- 3.654761905 in ; 98 mm
- Power Loss Action
- Spring return
- Runtime
- 90 s
- Shaft Mounting
- Universal
- Spring Return
- Yes
- Spring Return Orientation
- CW or CCW (based on actuator orientation)
- Stall Torque
- 70 in·lb
- Supply Voltage
- 24 V AC ; 24 V DC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Torque
- 27 in·lb ; 3 Nm
- Valve Compatibility
- With linkage
