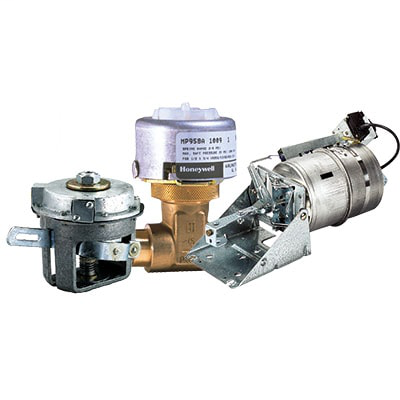

Honeywell MP909D1201/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell MP909D1201/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Motion
- Linear
- Actuator Type
- Pneumatic
- Application
- HVAC
- Connection Type
- Pneumatic Air Connection
- Damper Compatibility
- Dampers
- Diaphragm Effective Area
- 3 in² ; 19.4 cm²
- Includes
- 0.375 in 16TPI Shaft
- Maximum Operating Ambient Temperature
- 140 °F ; 60 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Operating Pressure
- 20 psi ; 140 kPa
- Minimum Operating Ambient Temperature
- 50 °F ; 10 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Operating Pressure
- 3 psi ; 21 kPa
- Overall Depth
- 6.3125 in ; 160 mm
- Overall Diameter
- 2.40625 in ; 61 mm
- Positive Positioner
- No Positioner
- Regulatory Approvals
- UL Recognized: Report R18118
- Spring Range
- 3 to 8 psi ; 21 to 55 kPa
- Spring Return
- Yes
- Stem Force
- Low
- Stroke Length
- 2.375 in ; 61 mm
