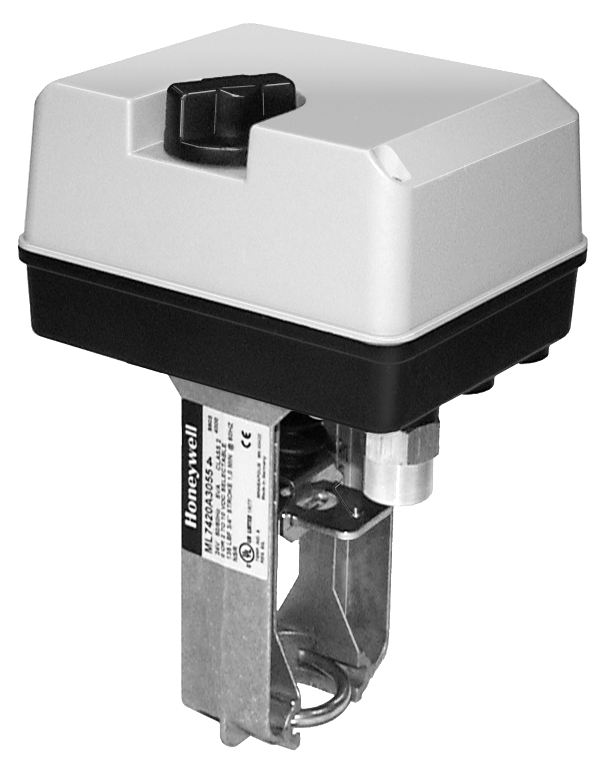

Honeywell ML7420A3055
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Quality and experience are what make Honeywell's actuators and motors the top performers in the HVAC industry. Honeywell's complete line of building control products is already proven in more than 110 million buildings, 5,000 industrial facilities and hundreds of utilities worldwide. If you need an actuator with lasting value or a motor with reliable performance and trouble-free operation, specify Honeywell. The Honeywell direct mounted linear actuators provide easy and quick installation with no separate linkage. Many of the actuator solutions are dedicated to specific valve families providing the right amount of torque and control for most HVAC applications.Linear Actuators, VALVE ACTUATOR
Honeywell ML7420A3055 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Actuator Control Signal
- Modulating
- Actuator Motion
- Linear
- Actuator Type
- Electric
- Application
- HVAC
- Connection Type
- Screw terminals
- Control Signal
- Modulating (0)2-10 Vdc
- Drive Timing
- 60 s
- Driving Power Consumption
- 7 VA/kg
- Feedback
- 2-10 Vdc
- Feedback Included
- Yes
- Fire & Smoke Rating
- No
- Frequency
- 50 Hz ; 60 Hz
- Housing Material
- ABS-FR Plastic ; Aluminum
- Includes
- Conduit connector- 0.5 in
- Input Impedance
- 1 Kohm
- IP Rating
- IP54
- Manual Override Included
- Yes
- Manual Override Type
- Manual rotating knob
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Storage Temperature
- 158 °F ; 70 °C
- Maximum Valve Medium Temperature
- 300 °F ; 150 °C
- Minimum Operating Ambient Temperature
- 14 °F ; -10 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Storage Temperature
- -40 °F ; -40 °C
- Mounting Style
- Directly on V5011/V5013/VGF Globe Valves with 3/4" or 20mm stroke
- Number of Internal Auxiliary Switches
- 0
- Overall Depth
- 6.3125 in ; 161 mm
- Overall Height
- 9.5625 in ; 242 mm
- Overall Width
- 5.3125 in ; 135 mm
- Regulatory Approvals
- CE Approved ; CSA Certified ; UL 94V-5V- Flammability Rating
- Spring Return
- No
- Stem Force
- 135 lbf ; 600 N
- Stroke Length
- 0.75 in ; 20 mm
- Supply Voltage
- 24 V AC
- Valve Compatibility
- 1/2 to 3 in V5011/V5013/VGF
