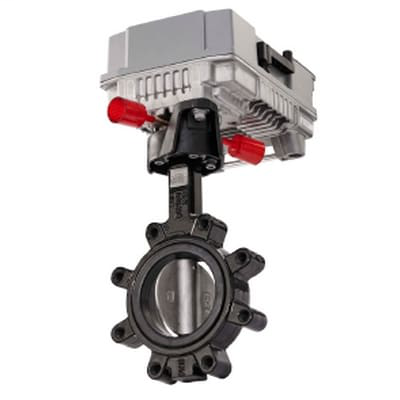

Honeywell MBS8L1N2/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Replacement actuators for use on VR and VH series butterfly valves. Refer to the Product Data sheet for actuator compatibility. VR Series Product Data 31-00190EF: https://digitalassets.honeywell.com/digitalasset/36b04645-69e8-4bab-b146-9f70ef412571.pdf -- VH Series Product Data 31-00191EF: https://digitalassets.honeywell.com/digitalasset/116e8cd4-da99-4d0e-bb70-b6ee07f662a4.pdfButterfly Valve Replacement Actuators, BFLY ACT 2-POS 24VAC 180LB-IN
Honeywell MBS8L1N2/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Angle of Rotation
- 90 °
- Application
- Butterfly Valves
- Compatible with External Auxiliary Switches
- No
- Connection Type
- Cable
- Control Signal
- Two-Position (SPST)
- Damper Compatibility
- No
- Driving Power Consumption
- 10 VA
- Feedback Included
- No
- Fire & Smoke Rating
- No
- For Use With
- Butterfly Valves ; Two-Position (SPST) controller
- IP Rating
- IP54
- Lead Length
- 3 ft ; 1 m
- Manual Override Included
- Yes, 5 mm hex crank (3/16” Allen), supplied
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Shipping & Storage Temperature
- 176 °F ; 80 °C
- Minimum Operating Ambient Temperature
- -22 °F ; -30 °C
- Minimum Operating Humidity
- 5 % non-condensing
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Mounting Style
- Direct Coupled
- NEMA Rating
- NEMA 2
- Number of End Switches
- 0
- Power Loss Action
- Spring return
- Regulatory Approvals
- CE ; cULus
- Runtime
- 150 s
- Shaft Mounting
- Butterfly valve
- Spring Return
- Yes
- Spring Return Orientation
- CW or CCW (based on actuator orientation)
- Supply Voltage
- 24 V AC ; 24 V DC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Torque
- 180 in·lb ; 20 Nm
- Valve Compatibility
- VR and VH series butterfly valves
