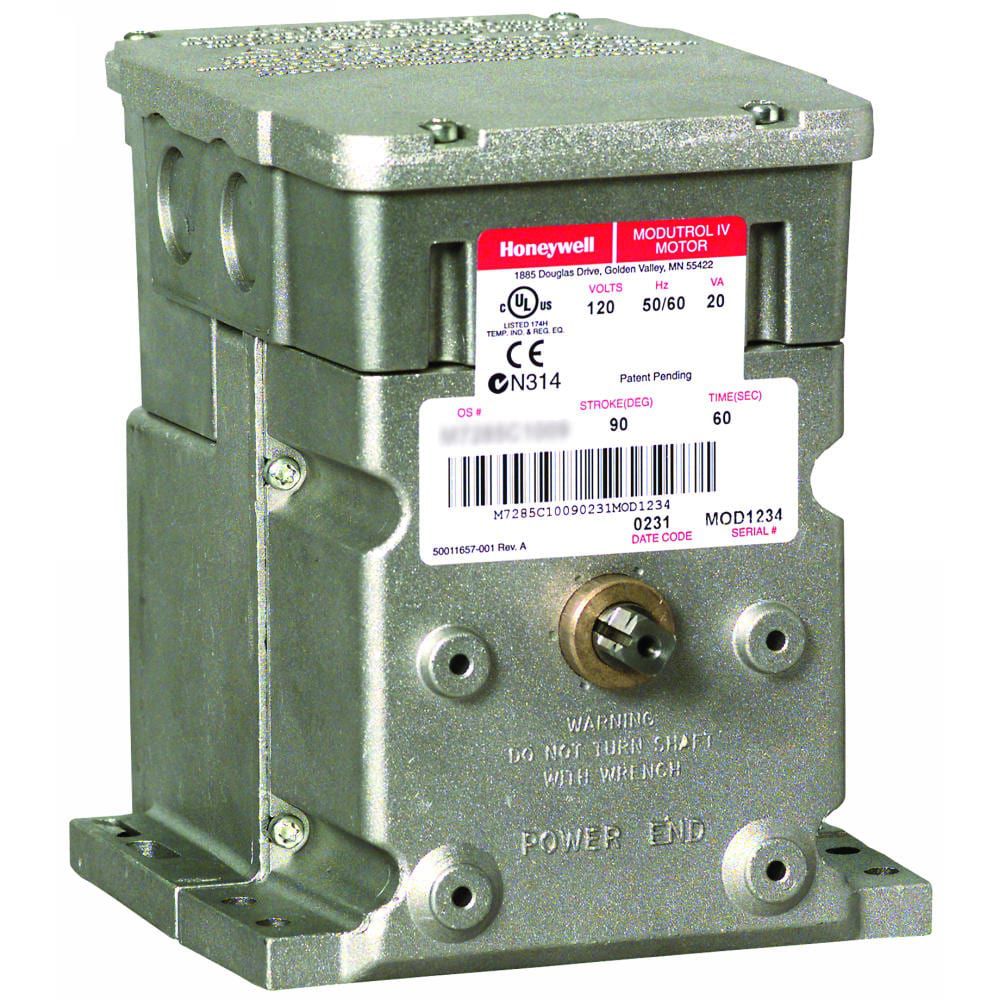

Honeywell M9182A1011/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Quality and experience are what make Honeywell's actuators and motors the top performers in the HVAC industry. If you need an actuator with lasting value or a motor with reliable performance and trouble-free operation, specify Honeywell. The Honeywell actuator products make precision easy with self-centering shaft adaptors, detachable access covers and universal signal mode adaptors.Rotary Actuators, VALVE/DAMPER ACTUATOR PROPORTIONING, 6
Honeywell M9182A1011/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Angle of Rotation
- 160 °
- Application
- HVAC
- Built In Rotation Limiter
- No
- Compatible with External Auxiliary Switches
- Yes, Q607
- Connection Type
- Quick-connect terminals
- Control Signal
- Proportional (135 ohm)
- Damper Compatibility
- With crankarm and linkage
- Driving Power Consumption
- 20 VA
- Features
- Adjustible stroke, 90° to 160° Asymmetrical
- Feedback Included
- No
- Fire & Smoke Rating
- No
- Housing Material
- Die-cast Aluminum
- Manual Override Included
- No
- Maximum Operating Ambient Temperature
- 150 °F ; 60 °C
- Minimum Operating Ambient Temperature
- -40 °F ; -40 °C
- Mounting Style
- Foot-mounted
- NEMA Rating
- NEMA 3
- Number of End Switches
- 0
- Overall Depth
- 8.75 in ; 222 mm
- Overall Height
- 6.4375 in ; 164 mm
- Overall Width
- 5.5 in ; 140 mm
- Power Loss Action
- Spring return
- Regulatory Approvals
- UL and cUL Listed: File E4436- Guide XAPX
- Runtime
- 30 to 60 s
- Shaft Mounting
- Adaptable using crank arm or linkage
- Spring Return
- Yes
- Supply Voltage
- 24 V AC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Torque
- 60 in·lb ; 6.8 Nm
- Valve Compatibility
- Globe valves with Q5001 linkage
