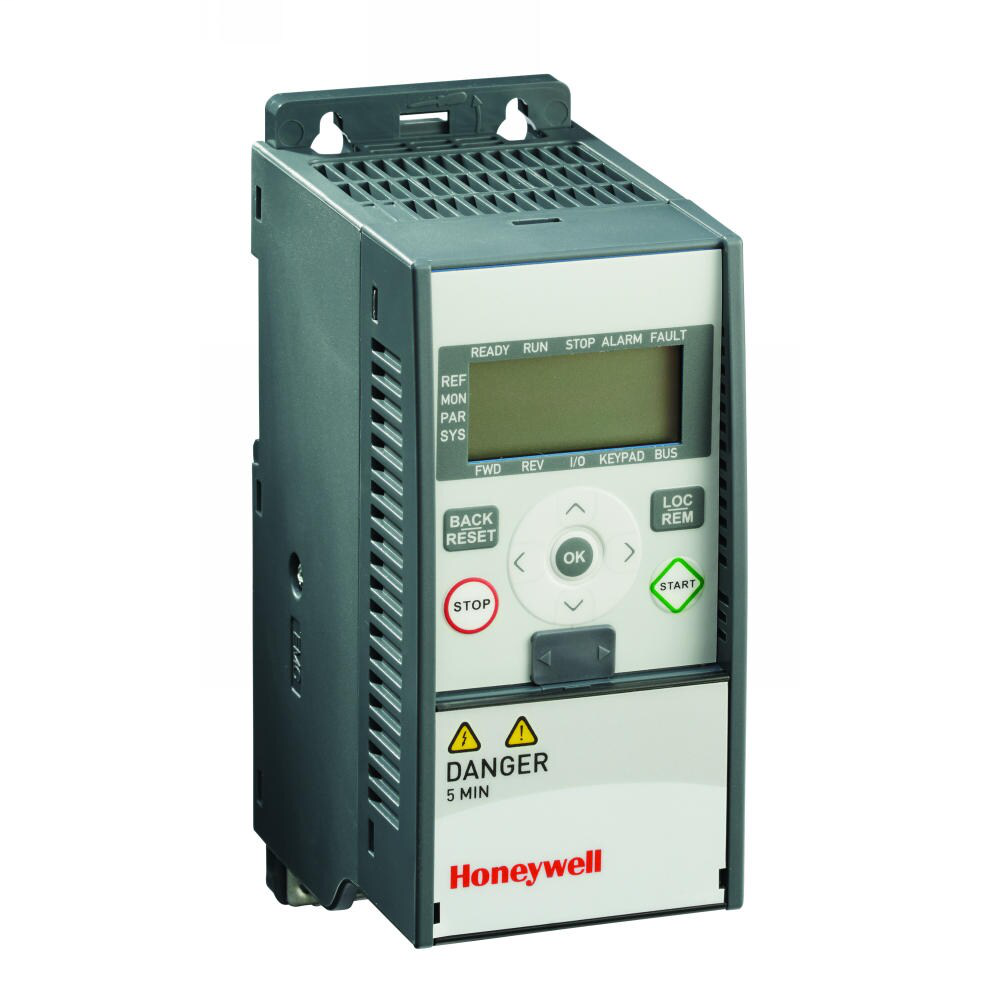

Honeywell HVFD2D3C0010E2
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell variable frequency drives (VFDs) maximize energy savings by modulating the speed of fans and pumps in HVAC systems. VFDs, sometimes called inverters, achieve these savings by operating in conjunction with a building automation system (BAS) or independently through its internal PID capabilities. A Honeywell VFD is loaded with labor-saving features such as startup wizards, PC programming and an intuitive graphical interface that allows for faster, more accurate commissioning.VFD Alone, VFD HVAC2 3-PHASE 380-480V 1HP EMC2
Honeywell HVFD2D3C0010E2 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Analog Inputs
- 0-10Vdc- Ri = 250kΩ; 0(4)-20mA- Ri 250Ω- 1 Voltage- 1 Selectable
- Analog Outputs
- 0-10Vdc- RL 1kΩ; 0(4)-20mA- RL 500Ω- Selectable
- Application
- Constant or Variable Torque
- Bypass/Disconnect Options
- Drive alone
- Continuous Output Current
- Overload: 1.5 x IN max- 1 min / 10 min
- Current Ratings
- 2.4 A
- Digital Output
- Open collector- max. load 35V/50mA (floating)
- Drive Family
- SmartVFD HVAC2
- Drive Input Disconnect
- No
- Enclosure Type
- Open Chassis - NEMA1 kit available
- Frame Type
- MI1
- Horsepower
- 1 HP
- Input Voltage
- 460 (3PH) V AC
- Maximum Acceleration time
- 3000 s
- Maximum Deceleration time
- 3000 s
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Maximum Operating Humidity
- 95 %
- Maximum Shipping & Storage Temperature
- 158 °F ; 70 °C
- Minimum Acceleration time
- 0.1 s
- Minimum Deceleration time
- 0.1 s
- Minimum Operating Ambient Temperature
- 14 °F ; -10 °C
- Minimum Operating Humidity
- 0 %
- Minimum Shipping & Storage Temperature
- -40 °F ; -40 °C
- Output Voltage
- 460 (3PH) V AC
- Overall Depth
- 3.9 in ; 99 mm
- Overall Height
- 6.3 in ; 160 mm
- Overall Weight
- 0.5 ; 1.2
- Overall Width
- 2.6 in ; 66 mm
- Peak Current
- 2 x IN- 2s/20s
- Reference Output Voltage
- 10 Vdc- max load 10 mA
- Regulatory Approvals
- CE ; EN 61800-5-1 ; cUL
- Relay Rated Load
- Max load: 250Vac/3A- 24Vdc/3A
- Type of RFI Filter
- EMC Filter
