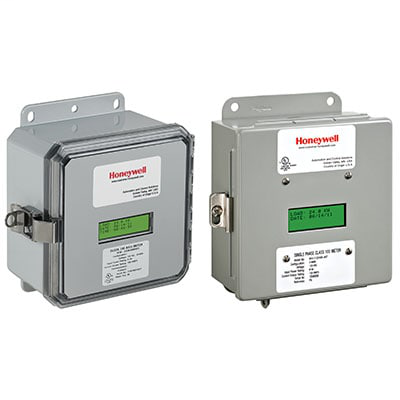

Honeywell E10-3208100MSCS
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Class 1000 (H10) Meters provide kW and kWh data for single-phase power. These revenue-grade meters maintain reading in the event of power failure and include one set of split-core current sensors. Work with WEBs-AX Energy Analytics Tenant Billing and E-mon Energy Software.CLASS 1000 SUBMETER, 1 or 2 Phase, 100 A, 120/208-240 V AC
Honeywell E10-3208100MSCS is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy
- ±1% from 1% to 100% of rated load
- Application
- The Class 100 kWh meters are fully electronic meters for monitoring electrical usage in commercial and industrial applications.
- Class
- 1000
- Communication Protocols
- Pulse Output
- Current
- 100 A
- Current Sensor Output
- 2 V
- Current Sensors Included
- Yes
- Current Sensor Type
- Solid-Core
- Display
- 2-Line LCD Display
- Enclosure Type
- MMU
- Frequency
- 50 Hz ; 60 Hz
- Input Voltage Configuration
- 3 wire
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Minimum Operating Ambient Temperature
- -4 °F ; -20 °C
- Modem Included
- No
- Number of Current Sensors Included
- 2
- Overall Depth
- 3 in ; 76 mm
- Overall Height
- 7.5 in ; 171 mm
- Overall Weight
- 6.56
- Overall Width
- 6 in ; 152 mm
- Phases
- 1 or 2
- Regulatory Approvals
- ANSI C12.20 ; UL/CUL
- Voltage (L-N/L-L)
- 120/208-240 V AC
