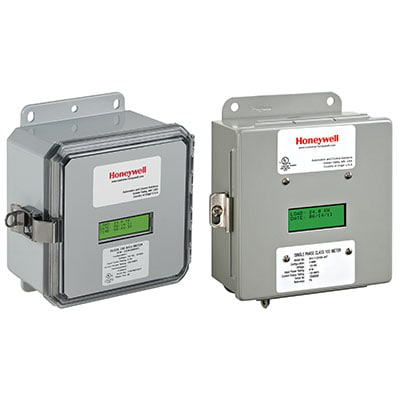

Honeywell E10-3208100JSCS
Description
Honeywell E10-3208100JSCS is now available new, surplus, and used from Williams Automation.
If you need a specific firmware or series relating to this item, please call or email us with your request.
We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you require one.
Please note we offer UPS Next Day Air shipping for all orders. Please be sure to select next day shipping at checkout, and we will provide same-day shipment.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Accuracy
- ±1% from 1% to 100% of rated load
- Application
- The Class 100 kWh meters are fully electronic meters for monitoring electrical usage in commercial and industrial applications.
- Class
- 1000
- Communication Protocols
- Pulse Output
- Current
- 100 A
- Current Sensor Output
- 2 V
- Current Sensors Included
- Yes
- Current Sensor Type
- Solid-Core
- Display
- 2-Line LCD Display
- Enclosure Type
- JIC Steel
- Frequency
- 50 Hz ; 60 Hz
- Input Voltage Configuration
- 3 wire
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Minimum Operating Ambient Temperature
- -4 °F ; -20 °C
- Modem Included
- No
- Number of Current Sensors Included
- 2
- Overall Depth
- 3 in ; 76 mm
- Overall Height
- 7.5 in ; 171 mm
- Overall Weight
- 6.56
- Overall Width
- 6 in ; 152 mm
- Phases
- 1 or 2
- Regulatory Approvals
- ANSI C12.20 ; UL/CUL
- Voltage (L-N/L-L)
- 120/208-240 V AC
