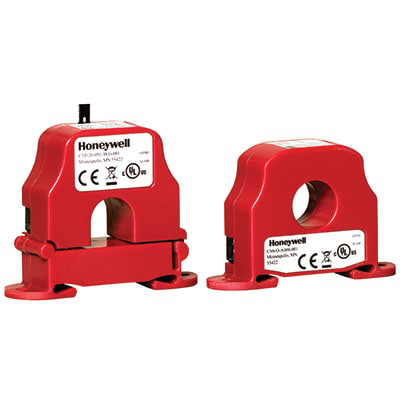

Honeywell CTP-V-150
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell current switches can detect whether or not current is flowing, and then transmit the status to a building management system, DDC or PLC controller. Honeywell current transmitters measure and report the specific operating current.Current Sensors and Command Relays, 0-10VDC SPLIT CORE 150A
Honeywell CTP-V-150 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Analog Outputs
- 0-10 Vdc
- Aperture Size
- 3/4 in. (19 mm). Accepts up to 350 MCM (17.3 mm) cables.
- Application
- Ideal for retrofit or existing installations requiring load trending (current monitoring)
- Core Type
- Split
- DIN Rail Size
- 1.375 in ; 35 mm
- Enclosure Rating
- UL94-V0
- Isolation Voltage
- 2200 V AC
- Maximum Operating Ambient Temperature
- 104 °F ; 40 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Sensing Current Voltage
- 600 V AC
- Measured Current Accuracy
- ±1% of selected range
- Minimum Operating Ambient Temperature
- 5 °F ; -15 °C
- Minimum Operating Humidity
- 0 % non-condensing
- Operating Current Range
- 0-150 Amps; 0-100 Amps; 0-50 Amps
- Operating Frequency Range
- 50-600 Hz
- Output Switch Rating
- 0-10Vdc for 50/100/150A adjustable
- Overall Depth
- 1.12 in ; 28.45 mm
- Overall Height
- 3.238 in ; 82.25 mm
- Overall Width
- 2.78 in ; 70.51 mm
- Product Type
- Transmitter
- Regulatory Approvals
- UL Approved ; WEEE-Directive 2002/96/EC
- Response Time
- <600ms (rise and fall time)
- Supply Voltage
- Induced from the Monitored Conductor (Insulated Conductors only)
