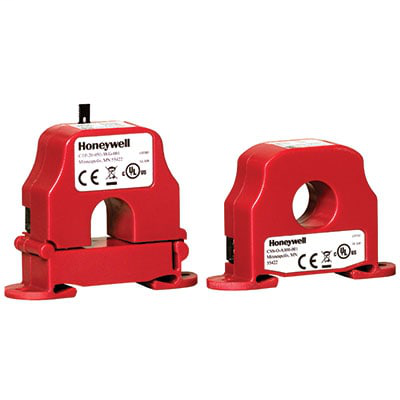

Honeywell CSS-C-F1-001/U
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell current switches can detect whether or not current is flowing, and then transmit the status to a building management system, DDC or PLC controller. Honeywell current transmitters measure and report the specific operating current.Current Sensors and Command Relays, CURRENT SWITCH
Honeywell CSS-C-F1-001/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Aperture Size
- 3/4 in. (19 mm). Accepts up to 350 MCM (17.3 mm) cables.
- Application
- Great for monitoring fans- pumps- motors- compressors- or other electrical equipment
- Color
- Burgundy
- Core Type
- Solid
- DIN Rail Size
- 1.375 in ; 35 mm
- Enclosure Rating
- UL94-5V
- Indicator LED
- Red - Above the trip point
- Isolation Voltage
- 2200 V AC
- Maximum Operating Ambient Temperature
- 104 °F ; -15 °C
- Maximum Operating Humidity
- 95 % non-condensing
- Maximum Sensing Current Voltage
- 600 V AC
- Minimum Operating Ambient Temperature
- 5 °F ; 40 °C
- Minimum Operating Humidity
- 0 % non-condensing
- Operating Current Range
- 0-250A
- Operating Frequency Range
- 40 Hz to 1 kHz
- Output Switch Rating
- 0.15 Amps @ 300 Vac/Vdc
- Overall Depth
- 0.984 in ; 25 mm
- Overall Height
- 2.266 in ; 58 mm
- Overall Weight
- 0.21 lb ; 0.1
- Overall Width
- 3.38 in ; 86 mm
- Product Type
- Switch
- Regulatory Approvals
- CE Approved ; RoHS-Directive 2002/95/EC
- Supply Voltage
- Induced from monitored conductor
- Switch Position
- N.C.
- Trip Point
- 0.50 Amps
