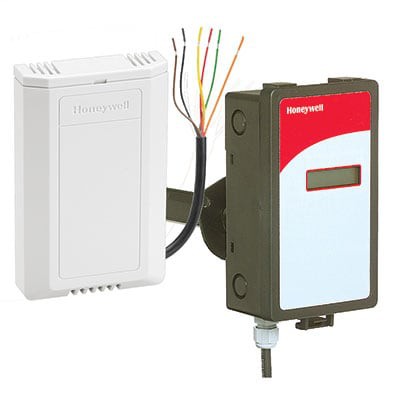

Honeywell C7262A1016/U
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Honeywell C7262A1016/U is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Specifications
- Application
- Carbon Dioxide Sensor
- CO2 Sensor Accuracy
- ±30 ppm + 3% of reading
- CO2 Sensor Element
- Non-dispersive Infrared (NDIR)
- CO2 Sensor Output
- 0/2-10 V DC ; 0/4-20 mA
- CO2 Sensor Range
- 0 to 2000- adjustable ppm
- Control System Type
- Electric
- Display
- No
- Maximum Operating Ambient Temperature
- 122 °F ; 50 °C
- Minimum Operating Ambient Temperature
- 32 °F ; 0 °C
- Mounting Type
- Wall mount
- Overall Depth
- 0.875 in ; 22 mm
- Overall Height
- 4.5625 in ; 116 mm
- Overall Width
- 3 in ; 76 mm
- Relay Output Configuration
- One: Normally Open SPST
- Relay Rated Load
- 1 A @ 50 V AC/24 V DC
- Response Time
- 1 min
- Sensor Type
- CO2
- Supply Voltage
- 24 ±20% V AC ; 24 ±20% V DC
- Supply Voltage Frequency
- 50 Hz ; 60 Hz
- Temperature Sensor Element
- 20K ohm NTC
- Temperature Sensor Output
- 20K ohm at 77F (25C)
- Temperature Sensor Range
- 50 to 100 °F ; 10 to 38 °C
