Hirschmann 934889006
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

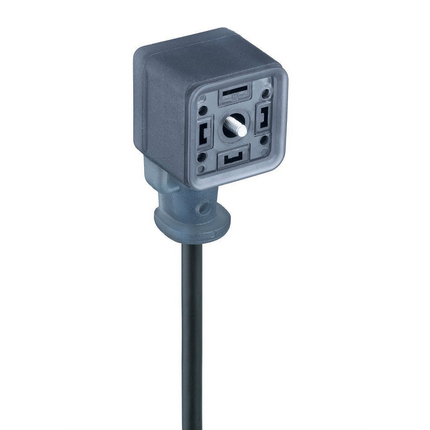

GAN DIN Standard Single-Ended Cordset: Form A, 4-pin (3+1PE; PE across cable outlet), grey translucent body, without circuitry, 230 V AC/DC, 6 A; PVC black cable, 0.50 mm²934889006 - GAN31LU-A0U-743 - GAN DIN Standard Single-Ended Cordset: Form A, 4-pin (3+1PE; PE across cable outlet), grey translucent body, without circuitry, 230 V AC/DC, 6 A; PVC black cable, 0.50 mm²
Hirschmann 934889006 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Additional Technical Data
- Fastening Torque (Attachment)
- (50-60) Ncm
Approvals
- VDE
- yes
Cable Data
- Ambient Temperature (Fixed Installation)
- 40 °C - + 80 °C
- Ambient Temperature (Flex Installation)
- 5 °C - + 80 °C
- Cable Diameter D
- ø 5.3 ± 0.20 mm
- Cable Jacket Color
- black
- Cable Jacket Material
- PVC
- Cable Number
- 743
- Conductor material
- Cu
- Conductor Size
- 0.50 mm²
- Insulated Wire Diameter
- ø 1.50 ± 0.05 mm
- Minimal Bending Radius (Fixed Inst)
- ˃ 5 x D
- Minimal Bending Radius (Flexible Inst)
- ˃ 10 x D
- Number of Wires
- 4
- UL Cable Type
- AWM: 2464
- Wire Insulation Material
- PVC
Materials
- Attachment Material
- Steel, Philips combi slot
- Contact Base Material
- CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA GF
- Contact Plating
- Cu/Sn
- Flammability Class (Contact Bearer)
- UL 94 V-0
- Flammability Class (Molded Body)
- UL 94 HB
- Gasket Material
- Molded Integrated Gasket
- Molded Body Color
- Grey translucent
- Molded Body Material
- TPE
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Resistances
- Halogenfree
- no
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Length
- 2 m
- Item Description
- GAN31LU-A0U-7430200
Technical Data
- Ambient Temperature (Operation)
- -25 °C - +85 °C (With additional 934-887-001 gasket : -40 °C - +105 °C)
- Attachment Type
- Central Screw
- Brand
- Hirschmann
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- A
- Connector Design
- Angled
- Connector Type
- Cordset, single ended
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 175301-803-A, ISO 4400
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 50
- Number of Pins
- 3+PE (PE across cable outlet)
- Operating Voltage
- 230 V AC/DC
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Valve Connectors
- Product Sub Family
- GAN
- Protection Degree / IP Rating
- IP65, IP67 (IP69K: without additional gasket; max. +80 °C)
- Rated Current
- 6 A
- Rated Impulse Voltage
- 4.0 kV
- Shielding
- Unshielded
- Type of Contact / Gender
- Female
