Hirschmann 931297002
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

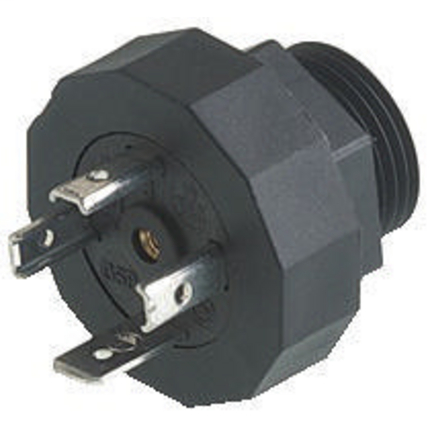

GSP DIN standard receptacle with connection thread and solder contacts: Form A, 4-pin (3+1PE), PG16, black housing, solder type; 400 V AC/DC, 16 A931297002 - GSP 316 - GSP DIN standard receptacle with connection thread and solder contacts: Form A, 4-pin (3+1PE), PG16, black housing, solder type; 400 V AC/DC, 16 A
Hirschmann 931297002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Approvals
- SEV
- yes
- VDE
- yes
Materials
- Contact Base Material
- CuZn
- Contact Bearer Color
- black
- Contact Bearer Material
- PA GF
- Contact Plating
- Cu/Sn
- Flammability Class (Contact Bearer)
- UL 94 V-0
- Flammability Class (Housing)
- UL 94 HB
- Housing Color
- black
- Housing Material
- PA GF
- O-Ring Material
- NBR
Notes
- Note
- Do not connect or disconnect under load.
- Note Derating
- Notice derating
- Protection Degree / IP Rating Note
- only if mounted and locked in combination with Hirschmann / Lumberg Automation connector.
Safety & Environmental Compliance
- RoHS Compliant
- yes
Specifications
- Cable Gland
- PG16
- Item Description
- GSP 316
Technical Data
- Ambient Temperature (Operation)
- -40 °C - +125 °C
- Attachment Type
- Central Screw
- Brand
- Hirschmann
- Clearance / Creepage Distance
- DIN EN 60664-1 (2008/01); VDE 0110-1
- Coding
- A
- Conductor Cross Section
- 0.08 - 1.5 mm²
- Connector Design
- Straight
- Connector Sub Type
- Circular receptacle with connection thread and solder contacts
- Connector Type
- Receptacle
- Contact Resistance
- ≤ 10 mOhm
- Design Standard
- DIN EN 175301-803-A, ISO 4400
- Insulation Resistance
- ˃ 10^9 Ohm
- Mating Cycles
- ≤ 50
- Number of Pins
- 3+PE
- Operating Voltage
- 400 V AC/DC
- Overvoltage Category
- III acc. to DIN EN 60664-1 (VDE 0110-1)
- Pollution Degree
- 3 acc. to DIN EN 60664-1 (VDE 0110-1)
- Product Family
- Valve Connectors
- Product Sub Family
- GSP
- Protection Degree / IP Rating
- IP65
- Rated Current
- 16 A
- Rated Impulse Voltage
- 4.0 kV
- Shielding
- Unshielded
- Type of Connection
- Solder
- Type of Contact / Gender
- Male
