HellermannTyton 857-01537
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

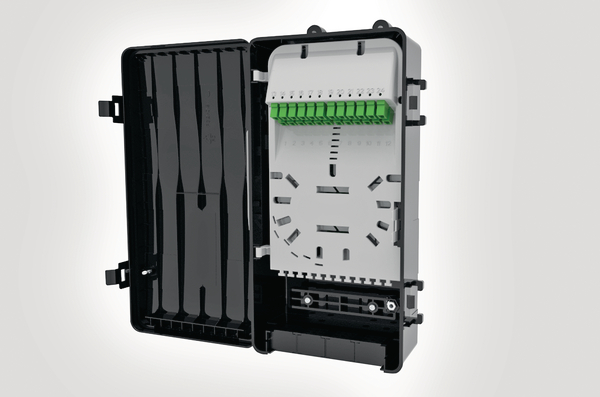

The AFN (Aerial Fibre Node) has been designed for deployment within the last mile of the FTTx network. This enclosure can be used within a P2P (Point to Point) or P2MP (Point to Multi Point) network with the addition of connectorised PLC splitters or pigtails and adaptors.AFN - Aerial Fibre Node
HellermannTyton 857-01537 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Cable ∅ max
- 7.2mm
- Cable ∅ min
- 0.1mm
- Colour
- Black (BK)
- Connector Colour
- Green (GN)
- Connector Type
- LC-APC
- Content
- AFN Enclosure 24 LC SX APC Adaptors Entry/Exit Port Seals Fibre Picker Wall Mounting Kit Cable Ties Red/Green
- Package Quantity per
- box
- Pack Cont.
- 1
- PART DESCRIPTION
- AFN-9999LCRXXX1/BK
- Pigtail Cable Capacity
- 0
- Product Family
- Fibre Optic External Enclosure
- Product Group
- AFN - Aerial Fibre Node
- Splice Capacity
- 24
- Technical Description
- The AFN - Aerial Fibre Node is manufactured from UV stable black polycarbonate with a completely detachable lid which can also be snapped back in to position using the snap back hinges allowing unrestricted access to all fibre management areas. The enclosure has 3 separate management areas for inbound cable, fibre splice management and drop cable (customer connection) management. The inbound cable management area has a dedicated cable entry port which supports both cable end and mid-span applications with loop storage capacity for up to 4m of 144 core fibre cable and the entry port is sealed with a cable entry kit to maintain the IP55 rating. The fibre splice management area has capacity for a maximum of 48 3A splices and maintains positive fibre management (30mm minimum bend radius) throughout. The tray has a crossover facility which allows for alternative routing requirements and a fibre storage capacity of 1.5m for 250µm fibre. The drop cable management area presents 24 LC APC Simplex adaptors for connection to industry standard pre-terminated drop cables and a maximum of 6 PLC splitters (60mm x 7mm x 4mm) can be fitted on the inside of the management area. The drop cable management area cover prevents access to the network cables and splicing area and the adaptors are angled and spaced to allow for inspection prior to connection. Twelve anchor guides are provided for securing the drop cables (maximum diameter 4.2mm) and an integral seal maintains the IP55 rating.
- Variant
- Outdoor FTTx Enclosures
Logistics and Packaging
- EAN / GTIN
- 5022660164743
Material and Specifications
- Material
- Polycarbonate (PC)
Product Dimensions
- Depth (D)
- 90mm
- Height (H)
- 342mm
- Width (W)
- 177mm
