HellermannTyton 857-01533

Base Data

• Adapter Capacity
  • 96
• Colour
  • Grey RAL 7035 (RAL7035)
• Connector Colour
  • Blue (BU)
• Connector Type
  • LC
• Content
  • S5 Enclosure 250µm IR Fibre Management System 12 250µm SE-IR Trays 24 LC PC Quad Adaptors 2 48 Way Quad Adaptor Connection Plates Loop Storage Basket 4 x Entry/Exit Port Blanks Strength Member Anchor In-built spirit level Fibre Picker Wall Mounting Kit Red and Green Polyspiral Tubing(2M) Red and Green Velcro Ties(5)
• Installed Adapters
  • 24
• Package Quantity per
  • EA
• Pack Cont.
  • 1
• PART DESCRIPTION
  • MDU-S5-BXWXCP24M
• Port count
  • 8
• Product Family
  • Fibre Optic External/Internal Enclosure
• Product Group
  • S5 Series MDU/MBU Enclosures
• Qty Trays
  • 12
• Splice Capacity
  • 144
• Technical Description

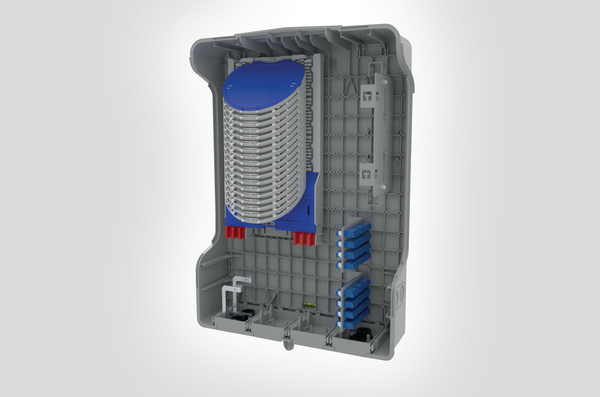

  • The S5 enclosure is configured with the HellermannTyton250µm IR Management System. The management system is mounted on an aluminium backplane which accommodates 12 250µm SE-IR trays giving a maximum of 144 250µm 3A fibre splices. The position of the fibre management system allows for easy access for the routing of fibre on to the trays. The trays and fibre optic routing modules are white which makes it easy to see the colour of the fibre elements as they are routed through the positive fibre management system. Fibre slot retaining blocks guide the fibre elements on to the IR system; the foam pad on the retainer is partially cut through to accommodate a range of fibre counts. All IR system cover plates are coloured blue identifying them as removable parts allowing access to the fibre, the fibre retaining block and tray retaining clips are coloured red to aid in identification if they are dropped. 2 LC Quad adaptor connection plates are fitted with 24 LC PC quad adaptors to provide 96 customer connection points. A loop storage basket is fitted for management of excess fibre and is located on left side of the fibre management trays. The enclosure is 568 x 375 x 165mm (H x W x D) and manufactured in light grey (RAL 7035), UV stable ABS (Acrylonitrile Butadiene Styrene) and has an IP54, IK08 and V0 rating. Designed with 8 dual input/output ports, 4 across the bottom, 2 on the top and 2 on each side, each port will accommodate a 20 or 25mm cable gland. A 100 x 25mm inset position on the front cover allows for a customer logo to be moulded in to the enclosure.
• Type of Tray
  • Integrated Routing SE, 250µm
• Variant
  • Indoor/Outdoor FTTx Enclosures

Logistics and Packaging

• EAN / GTIN
  • 5022660164613

Material and Specifications

• Material
  • Acrylonitrile Butadiene Styrene (ABS)

More Information

• UNSPSC Key
  • 43223338

Product Dimensions

• Depth (D)
  • 165mm
• Height (H)
  • 568mm
• Width (W)
  • 375mm
