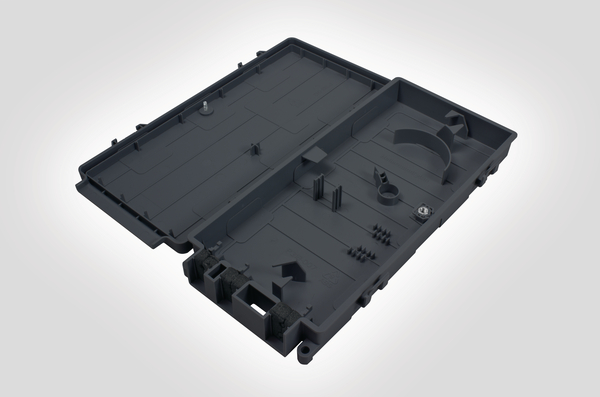

HellermannTyton 857-01434

Base Data

• Adapter Capacity
  • 2
• Cable ∅ max
  • 8.5mm
• Cable ∅ min
  • 2.5mm
• Colour
  • Black (BK)
• Content
  • Cable Entry Kit 2 x 6.0 - 8.5mm/1 x 2.5 - 6.5mm Mechanical Fixing Kit Wall Mounting Kit Laser Label
• Installed Adapters
  • 0
• Package Quantity per
  • EA
• Pack Cont.
  • 1
• PART DESCRIPTION
  • CCE-A1112XXX1/BK
• Pigtail Cable Capacity
  • 0
• Product Family
  • Fibre Optic External Enclosure
• Product Group
  • Customer Connection Enclosure
• Splice Capacity
  • 4
• Technical Description
  • The Customer Connection Enclosure (CCE) supports a maximum 2 x SC Simplex or LC Duplex adaptors. The closure is manufactured from UV stable ABS with a hinged lid which locks in the open position to allow for quick and clear access to the internal fibre. The closure has 6 entry/exit ports at the bottom of the closure which are suitable for cables and ducts up to a maximum diameter of 8.5mm. A loop through facility allows for single fibre elements to be removed and spliced whilst the remaining fibres can be fed on to the next connection point. A single port in the rear of the closure allows for fibre to be passed through the wall into the customer premises. Mechanical fixing is provided to secure all incoming/outgoing cables/blown fibre ducts and to provide strain relief where necessary. Internal positive fibre management and fibre retention clips maintain a minimum 30mm bend radius throughout for up to a maximum of 50m of 1.1mm diameter cable.
• Variant
  • Outdoor FTTx Enclosures

Logistics and Packaging

• EAN / GTIN
  • 5022660162527

Material and Specifications

• Material
  • Acrylonitrile Butadiene Styrene, UV-stabilised (ABSUV)

More Information

• UNSPSC Key
  • 43223338

Product Dimensions

• Depth (D)
  • 37mm
• Height (H)
  • 263mm
• Width (W)
  • 130mm
