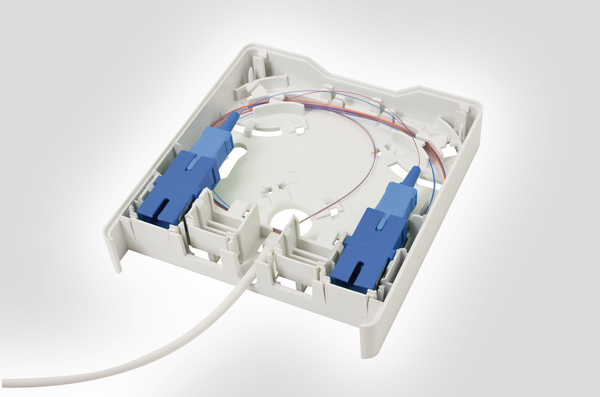

HellermannTyton 857-01365

Base Data

• Cable ∅ max
  • 3.0mm
• Colour
  • White (WH)
• Connector Colour
  • Blue (BU)
• Connector Type
  • SC
• Content
  • Fibre Wall Outlet 2 x SC PC Simplex Adaptors 10.0m 2 x SC PC Connector to Bare End Connection Cable Wall Mounting Kit
• Description
  • FWO with 2 x SC SX PC Adaptors and 1 x 10m 2 fibre pre-terminated cable.
• PART DESCRIPTION
  • FWOA-SSW22-010/WH
• Performance Category
  • G657.A1
• Product Family
  • Fibre Optic Internal Enclosure
• Product Group
  • Fibre Wall Outlet with Pre-terminated Internal Connecting Cable
• Splice Capacity
  • 4
• Technical Description
  • The fibre wall outlet is manufactured from ABS plastic and tamper proof latches secure the cover to the base. The Pre-terminated FWO is supplied with a 2 fibre G657.A1 10m cable and is fitted with a 2 x SC PC connector and 2 x SC SX PC adaptors. The pre-terminated adaptor is placed in to the wall outlet and the cable is routed through the rear of the outlet. The pre-terminated cable is available in lengths from 5m to 25m in 5m steps and from 30m to 100m in 10m steps. The small single socket size enclosure can be discretely mounted on the wall close to the building entry point providing the connection point for a router or active equipment. Fibre management features ensure a minimum bend radius of 30mm is maintained as the bare fibre is routed through the outlet and strain relief and anchor points secure the incoming cable. Screw holes allow for easy installation and positioning maintaining the outlet flush to the wall.

Logistics and Packaging

• EAN / GTIN
  • 5022660162435

Material and Specifications

• Material
  • Acrylonitrile Butadiene Styrene (ABS)

Product Dimensions

• Depth (D)
  • 21mm
• Height (H)
  • 85mm
• Length (L)
  • 10.0m
• Width (W)
  • 85mm
