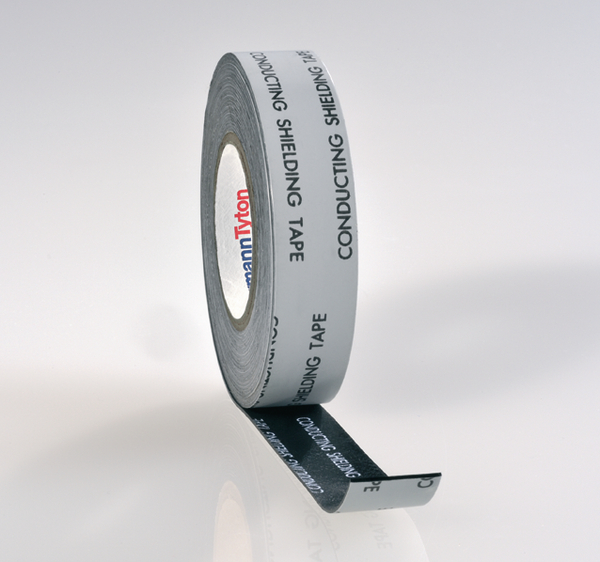

HellermannTyton 711-10000
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
HellermannTyton offers a comprehensive range of Vinyl, Rubber and Cloth Tapes for bundling, insulating, fixing, sealing and marking applications around all kinds of electrical applications. Vinyl electrical tapes are designed for low voltage applications and available in different dimensions and colours. Rubber tapes are suitable for sealing and insulating cables and splices in low, medium and high voltage applications. HelaTape Cloth tapes are extremely strong and ideal for identification, fixing, bundling and repair purposes. HelaTape Protect is used to build professional cable and wiring harnesses.Conductive Tapes – Electrical Semi-Conducting Tape
HellermannTyton 711-10000 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Package Quantity per
- reel
- Pack Cont.
- 1Reel
- PART DESCRIPTION
- HTAPE-SHIELD310-EPR-BK
- Product Family
- HelaTape Shield 310
- Product Group
- Conductive Tapes – Electrical Semi-Conducting Tape
- Short Description
- Self-amalgamating ethylene propylene rubber semi-conducting tape 19 mm x 4.6 m black
Logistics and Packaging
- EAN / GTIN
- 4031026548760
- Packaging 1 - Height (m)
- 0.019m
- Packaging 1 - Length (m)
- 0.085m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pcs.
- Packaging 1 - Volume (m³)
- 0.00014m³
- Packaging 1 - Weight (kg)
- 0.1kg
- Packaging 1 - Width (m)
- 0.085m
- Packaging 3 - Height (m)
- 0.215m
- Packaging 3 - Length (m)
- 0.36m
- Packaging 3 - Qty
- 80
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0143m³
- Packaging 3 - Weight (kg)
- 8.487kg
- Packaging 3 - Width (m)
- 0.185m
- Packaging 4 - Height (m)
- 1.22m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 4800
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.171m³
- Packaging 4 - Weight (kg)
- 530.198kg
- Packaging 4 - Width (m)
- 0.8m
- Storage Temperature
- +23 °C
- Weight
- 0.1kg
Material and Specifications
- Adhesion to Backing
- 2N/10 mm
- Adhesion to Steel
- 2.2N/10 mm
- Breaking Strength
- 4N/10 mm
- Elongation at break
- 500 %
- ELV compliant (Article 4 - 2)
- YES
- Hazardous good
- No
- Insulating (Yes/No)
- No
- Intermittent Operating Temperature
- +130°C
- Material
- Ethylene Propylene Rubber (EPR)
- Operating Temperature - °C
- -40 °C to +90 °C
- Self extinguishing (Yes/No) ETIM
- Yes
- Suitable for high voltage (Yes/No)
- Yes
- Tensile Strength
- 225N/mm²
- UV-Resistant (Yes/No)
- Yes
- Volume Resistance
- 870 Ω cm
- Water Absorption
- 0.02%
More Information
- ETIM 6.0
- EC000128
- ETIM 7.0 Key
- EC000128
Product Dimensions
- Length (L)
- 4.6m
- Thickness (T)
- 0.76mm
- Width (W)
- 19mm
