Description

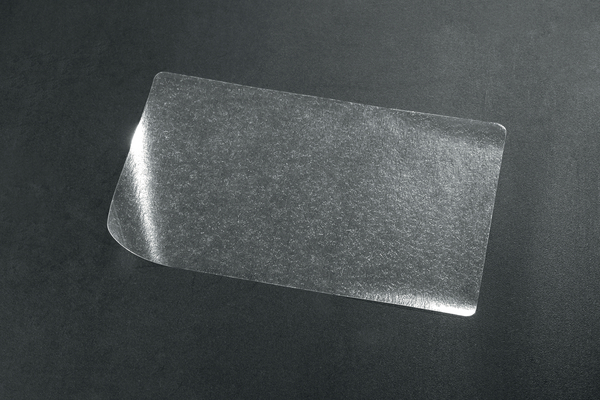

Protective laminates are used for the additional protection of printed type labels, for example in the automotive sector and for other outdoor installations. The protective laminates are also used if the contours of a label, for example on glass surfaces or backlit objects, should not be visible (no-label look).Protective laminates, thermal transfer
HellermannTyton 596-38321 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- TT431, TT431-BV, TT4030
- Colour
- Transparent (CL)
- Mounting method
- Stick
- Package Quantity per
- pcs.
- Pack Cont.
- 5000pcs.
- PART DESCRIPTION
- TAG0638TL2-323-CL-323-CL
- Product Family
- Helatag 323 (Transparent), high temperature
- Product Group
- Protective laminates, thermal transfer
- Self adhesive (Yes/No)
- Yes
- Short Description
- Protective Laminate for Thermal Transfer Printing 43.18x11.43 transparent
- With label space
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026213385
- Labels per Row
- 2pcs.
- Packaging 1 - Height (m)
- 0.15m
- Packaging 1 - Length (m)
- 0.165m
- Packaging 1 - Qty
- 5000
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00265m³
- Packaging 1 - Weight (kg)
- 0.69kg
- Packaging 1 - Width (m)
- 0.107m
- Packaging 3 - Height (m)
- 0.24m
- Packaging 3 - Length (m)
- 0.55m
- Packaging 3 - Qty
- 60000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0515m³
- Packaging 3 - Weight (kg)
- 8.78kg
- Packaging 3 - Width (m)
- 0.39m
- Weight
- 0.69kg
Material and Specifications
- Adhesive
- Acrylic
- Chem. Material Properties
- Excellent resistance against water, UV radiation, weather influence and solvents based on petroleum.
- Curing Temperature
- from +10 °C
- ELV compliant (Article 4 - 2)
- YES
- Halogenfree
- No
- Hazardous good
- No
- Material
- Type 323, Polyvinylidene Fluoride (PVDF), transparent (CL)
- Mech. material properties
- Use as protective over-laminate or clear printable label.
- Operating Temperature - °C
- -40 °C to +140 °C, intermittent +160 °C
- Recommended Ribbon Type
- TT822OUT
- UL-File Number
- MH61377
More Information
- ETIM 6.0
- EC001288
- ETIM 7.0 Key
- EC001288
Product Dimensions
- Height (H)
- 11.43mm
- HR
- 45.72mm
- Print Method
- Thermal transfer
- Thickness of Foil
- 25µm
- Thickness (T)
- 25.0µm
- VR
- 17.78mm
- Width of Liner (WL)
- 94.90mm
- Width (W)
- 43.18mm
