Description

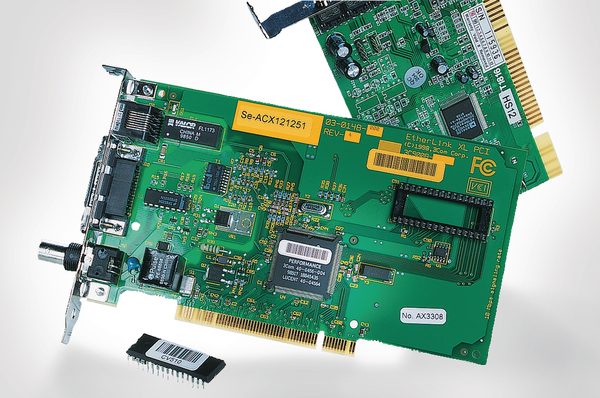

Helatag 823 labels have been designed to fit all areas when it comes to marking components on PCBs. The specially formulated adhesive labels give the highest quality print clarity when printed on thermal transfer printers. Designing and printing labels is simple and users can quickly print out professional labels in a matter of moments when using TagPrint Pro labelling software.Identification of parts and circuit boards, thermal transfer
HellermannTyton 596-35823 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- TT431, TT431-BV, TT4030
- Colour
- White (WH)
- Package Quantity per
- reel
- Pack Cont.
- 7500pcs.
- PART DESCRIPTION
- TAG35TD3-823-WH-823-WH
- Product Family
- Helatag 823 (White), PCB labelling
- Product Group
- Identification of parts and circuit boards, thermal transfer
- Self adhesive (Yes/No)
- Yes
- Short Description
- Identification of parts and circuit boards for thermal transfer print 31.75x9.53mm white
Logistics and Packaging
- EAN / GTIN
- 4031026211367
- Labels per Row
- 3pcs.
- Packaging 1 - Height (m)
- 0.15m
- Packaging 1 - Length (m)
- 0.165m
- Packaging 1 - Qty
- 7500
- Packaging 1 - Type
- carton
- Packaging 1 - Volume (m³)
- 0.00295m³
- Packaging 1 - Weight (kg)
- 0.698kg
- Packaging 1 - Width (m)
- 0.119m
- Packaging 3 - Height (m)
- 0.24m
- Packaging 3 - Length (m)
- 0.55m
- Packaging 3 - Qty
- 90000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0515m³
- Packaging 3 - Weight (kg)
- 8.87kg
- Packaging 3 - Width (m)
- 0.39m
- Weight
- 0.698kg
Material and Specifications
- Adhesive
- Acrylic
- Chem. Material Properties
- Excellent resistance against alcohol, petrol, solvents, butanol, etyl- and butylcellosolve solvents, battery acid.
- Curing Temperature
- from +10 °C
- ELV compliant (Article 4 - 2)
- YES
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Type 823, Polyester (PET), white (WH)
- Mech. material properties
- According to ESD requirements of EIA 625 and 541.
- Operating Temperature - °C
- -40 °C to +150 °C
- Recommended Ribbon Type
- TT822OUT
More Information
- ETIM 6.0
- EC001288
- ETIM 7.0 Key
- EC001288
Product Dimensions
- Height (H)
- 9.53mm
- HR
- 33.66mm
- Print Method
- Thermal transfer
- Thickness of Foil
- 51µm
- Thickness (T)
- 51.0µm
- VR
- 12.70mm
- Width of Liner (WL)
- 101.60mm
- Width (W)
- 31.75mm
