HellermannTyton 596-03103

Base Data

• Application 2

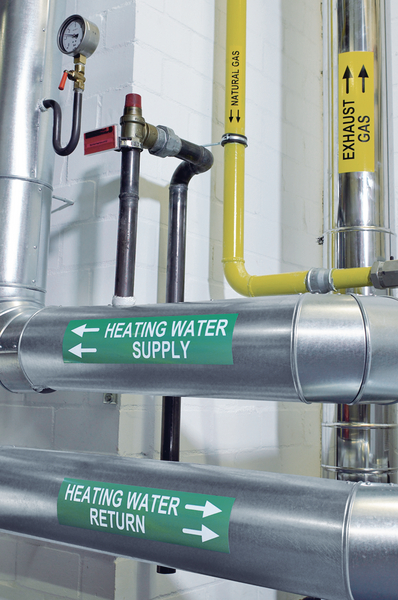

  • Coloured labels for pipe marking. General marking of parts and components, samples and blocked goods in quality assurance, multimedia components, warning notices, individual plaque holders for periodic inspections, etc.
• Application Tool
  • TT431, TT431-BV, TT4030
• Colour
  • Yellow gloss (GSYE)
• Features and Benefits
  • Continuous length label material in a range of high visibility colours gives the user the ability to print large sized text and barcodes for use in industrial pipe marking areas. The label can be cut to length after printing with a supplied in-line cutter with the TT4000 or by hand with the TT420. Using these products across the company ensures that all marking is to a consistent and professional standard. For problem-free printing, we recommend TagPrint Pro software, TT4000+ and TT420 printers. Use ribbon TT822OUT for yellow and white material, and ribbon TTRW for green and red material.
• Package Quantity per
  • reel
• Pack Cont.
  • 50m
• PART DESCRIPTION
  • TAGR4TD1-1213-YE-1213-YE
• Product Family
  • Material 1213 (Yellow)
• Product Group
  • Warehouse labelling, thermal transfer
• Self adhesive (Yes/No)
  • Yes
• Short Description
  • Warehouse Labelling for Thermal Transfer Printing 25 mm yellow

Logistics and Packaging

• EAN / GTIN
  • 4031026295428
• Labels per Row
  • 1pc.
• Packaging 1 - Height (m)
  • 0.03m
• Packaging 1 - Length (m)
  • 0.16m
• Packaging 1 - Qty
  • 1
• Packaging 1 - Type
  • bag
• Packaging 1 - Volume (m³)
  • 0.00077m³
• Packaging 1 - Weight (kg)
  • 0.337kg
• Packaging 1 - Width (m)
  • 0.16m
• Weight
  • 0.337kg

Material and Specifications

• Adhesive
  • Acrylic
• Chem. Material Properties
  • Resistant to water, alcohol, most oils, greases, fuel, aliphatic solvents, weak acids, salts and alkalis.
• Curing Temperature
  • from +8 °C
• ELV compliant (Article 4 - 2)
  • YES
• Halogenfree
  • No
• Hazardous good
  • No
• Material
  • Type 1213, Vinyl (PVC), glossy colours
• Mech. material properties
  • Due to its flexibility and adhesiveness the material is also suitable for rough surfaces.
• Operating Temperature - °C
  • -40 °C to +90 °C
• Recommended Ribbon Type
  • TT822OUT, TTRW

More Information

• ETIM 6.0
  • EC001288
• ETIM 7.0 Key
  • EC001288

Product Dimensions

• Length (L)
  • 50.0mm
• Print Method
  • Thermal transfer or laser beam
• Thickness of Foil
  • 66µm
• Thickness (T)
  • 66.0µm
• Width of Liner (WL)
  • 25.00mm
• Width (W)
  • 25.00mm
