Description

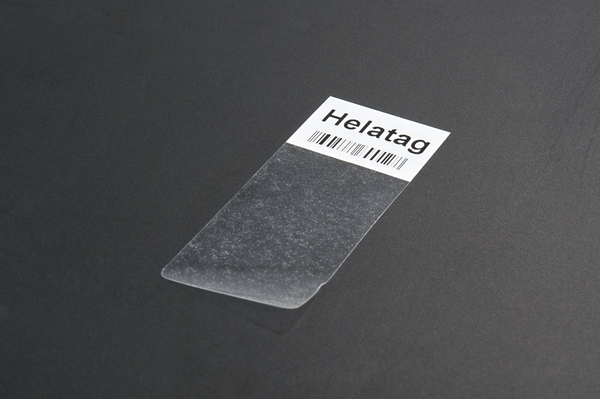

Helatag self-laminating wire markers are used in industries ranging from automotive for wire and pipe identification to electrical panels.Self-laminating labels, dot matrix
HellermannTyton 595-23101 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- White (WH), Transparent (CL)
- Colour Marking Field
- White (WH)
- Package Quantity per
- pack
- Pack Cont.
- 250pcs.
- PART DESCRIPTION
- TAG23-101-WHCL-101-CL/WH
- Product Family
- Helatag 101 (White-Transparent)
- Product Group
- Self-laminating labels, dot matrix
- Self adhesive (Yes/No)
- Yes
- Short Description
- Self-laminating labels, dot matrix 25.40x38.10x187.20mm white-transparent
- Variant
- Adhesive label
Logistics and Packaging
- EAN / GTIN
- 4031026236933
- Labels per Row
- 7pcs.
- Labels per Sheet
- 7pcs.
- Packaging 1 - Height (m)
- 0.015m
- Packaging 1 - Length (m)
- 0.315m
- Packaging 1 - Qty
- 250
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00113m³
- Packaging 1 - Weight (kg)
- 0.425kg
- Packaging 1 - Width (m)
- 0.24m
- Packaging 3 - Height (m)
- 0.24m
- Packaging 3 - Length (m)
- 0.55m
- Packaging 3 - Qty
- 10000
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0515m³
- Packaging 3 - Weight (kg)
- 17.5kg
- Packaging 3 - Width (m)
- 0.39m
- Weight
- 0.425kg
Material and Specifications
- Adhesive
- Acrylic
- Chem. Material Properties
- Good resistance to water, oils and many solvents.
- Curing Temperature
- from +10 °C
- ELV compliant (Article 4 - 2)
- YES
- Halogenfree
- No
- Hazardous good
- No
- Material
- Type 101, Vinyl (PVC), white transparent (WH/CL), self-laminating
- Operating Temperature - °C
- -40 °C to +80 °C
More Information
- ETIM 6.0
- EC001530
- ETIM 7.0 Key
- EC001530
Product Dimensions
- Bundle ∅ max.
- 47.50mm
- Bundle ∅ min.
- 23.70mm
- Core diameter from / to
- 23.7 - 47.50mm
- Height (H)
- 38.10mm
- Height (H2)
- 187.90mm
- H printable
- 38.10mm
- HR
- 27.94mm
- Outside ∅ max (OD max.)
- 47.50mm
- Outside ∅ min. (OD min.)
- 23.7mm
- Print Method
- Dot-matrix
- Thickness of Foil
- 80µm
- VR
- 190.50mm
- Width (W)
- 25.40mm
