HellermannTyton 594-51104
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

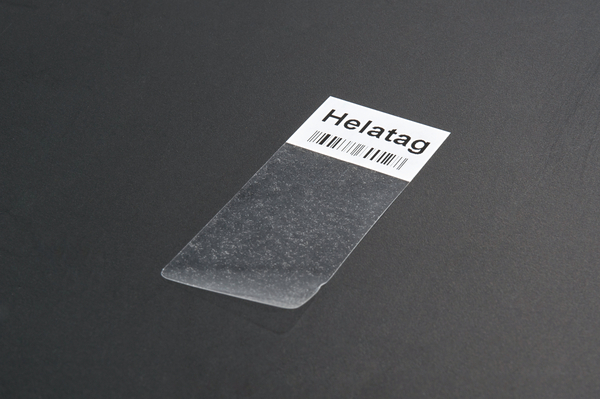

A specially developed material for use in labels required to wrap around cables and wires. The conformable structure of the label ensures that once the label is applied to the wire it remains in place without lifting. The rounded edge construction gives additional bonding features not found in straight edge label designs.
The information is printed onto the white inscription area. The printed information area is placed onto the wire and the transparent tail is wrapped around the wire and covers the text; this gives excellent protection from abrasion, dust and debris.
TagPrint Pro labelling program comes pre-loaded with all our labels. Designing labels is simply done; just choose inbuilt graphics or download your own and add data from ERP system or standard office programs such as Excel. Barcodes are created in a couple of clicks.Self-laminating labels, laser
The information is printed onto the white inscription area. The printed information area is placed onto the wire and the transparent tail is wrapped around the wire and covers the text; this gives excellent protection from abrasion, dust and debris.
TagPrint Pro labelling program comes pre-loaded with all our labels. Designing labels is simply done; just choose inbuilt graphics or download your own and add data from ERP system or standard office programs such as Excel. Barcodes are created in a couple of clicks.Self-laminating labels, laser
HellermannTyton 594-51104 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- White (WH), Transparent (CL)
- Colour Marking Field
- White (WH)
- Fixation Method
- Stick
- Mounting method
- Stick
- Package Quantity per
- pack
- Pack Cont.
- 2500pcs.
- Paper Format
- A4
- PART DESCRIPTION
- TAG133LA4-1104-WHCL-1104-CL/WH
- Product Family
- Material 1104 (White-Transparent)
- Product Group
- Self-laminating labels, laser
- Self adhesive (Yes/No)
- Yes
- Short Description
- Self-laminating labels, laser 19.05x12.70x44.50 mm white-clear
- Variant
- Adhesive label
- With label space
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026294377
- Labels per Row
- 10pcs.
- Labels per Sheet
- 60pcs.
- Packaging 1 - Height (m)
- 0.015m
- Packaging 1 - Length (m)
- 0.315m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00113m³
- Packaging 1 - Weight (kg)
- 0.46kg
- Packaging 1 - Width (m)
- 0.24m
- Packaging 3 - Height (m)
- 0.24m
- Packaging 3 - Length (m)
- 0.55m
- Packaging 3 - Qty
- 40
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0515m³
- Packaging 3 - Weight (kg)
- 18.9kg
- Packaging 3 - Width (m)
- 0.39m
- Sheets per Pack
- 42pcs.
- Weight
- 0.46kg
Material and Specifications
- Adhesive
- Acrylic
- Chem. Material Properties
- Excellent resistance to alcohol, gasoline, cleaning solvents, butanol, ethyl and Butylcellosolve solvent, battery acid.
- Curing Temperature
- from +10 °C
- ELV compliant (Article 4 - 2)
- YES
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Type 1104, Polyester (PET), white transparent (WH/CL), self-laminating
- Operating Temperature - °C
- -40 °C to +150 °C
- UL-File Number
- MH61377
More Information
- ETIM 6.0
- EC001530
- ETIM 7.0 Key
- EC001530
Product Dimensions
- Bundle ∅ max.
- 10.10mm
- Bundle ∅ min.
- 5.1mm
- Core diameter from / to
- 5.1 - 10.10mm
- Height (H)
- 12.70mm
- Height (H2)
- 44.50mm
- Outside ∅ max (OD max.)
- 10.10mm
- Outside ∅ min. (OD min.)
- 5.1mm
- Print Method
- Laser printer
- Thickness of Foil
- 25µm
- VR
- 46.60mm
- Width (W)
- 19.05mm
