Description

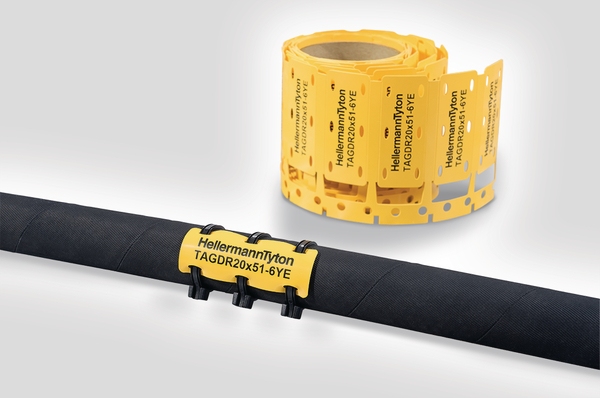

TAGDR is a cable marker designed for environments where identification is exposed to organic fluids and oils for long periods at high temperatures. The diesel resistant marker is ideal for rail applications. They are supplied pre-cut and have been formatted into a convenient "ladder" system. Simply print and press out the required TAGDR and apply to cables and harness assemblies with cable ties, they are also suitable for retrofit purposes.
Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device.Identification tags for cable bundle "Ladder Style", thermal transfer
Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device.Identification tags for cable bundle "Ladder Style", thermal transfer
HellermannTyton 556-83505 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- TT431, TT4030
- Colour
- Yellow (YE)
- Package Quantity per
- pack
- Pack Cont.
- 1000pcs.
- PART DESCRIPTION
- TAGDR20X51-4YE-PO-X-YE
- Printable (Yes/No)
- Yes
- Product Family
- TAGDR – Rail - Diesel Resistant Tiptags
- Product Group
- Identification tags for cable bundle "Ladder Style", thermal transfer
- Short Description
- Identification tags for cable bundle in ladder style 51x20 mm yellow
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026485720
- Labels per Column
- 1
- Labels per Row
- 1
- Packaging 1 - Height (m)
- 0.1m
- Packaging 1 - Length (m)
- 0.175m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- carton
- Packaging 1 - Volume (m³)
- 0.00306m³
- Packaging 1 - Weight (kg)
- 2.9kg
- Packaging 1 - Width (m)
- 0.175m
- Weight
- 6.393lbs
- 2.9kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- ASTM D2671 B
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Operating Temperature - °C
- -55 °C to +135 °C
- Recommended Ribbon Type
- TTDTHOUT
- Specifications
- MIL-STD-202G Method 215K, NF F 00-608 (12/1995), SAE - AS81531
- US Gov. Designation
- SAE-AS81531, MIL-STD-202G Method 215K
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
- UNSPSC Key
- 39131504
Product Dimensions
- Length (L)
- 51.0mm
- Print Method
- Thermal transfer or laser beam
- Strap Width max. (G)
- 0.18"
- 4.6mm
- Width (W)
- 20mm
