HellermannTyton 556-83011
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

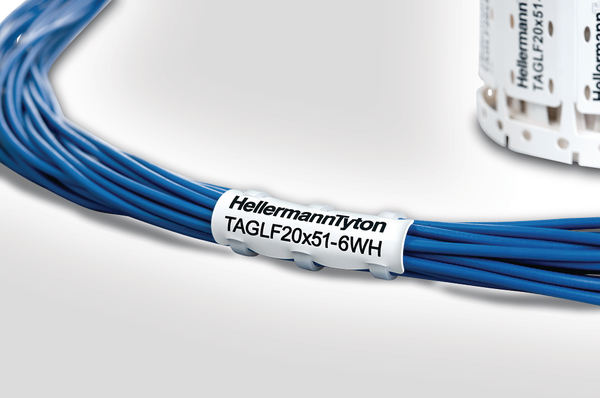

TAGLF is a halogen free cable marker for mass transit applications specifically in the railway industry or for all areas where limited fire hazard material is needed. TAGLF’s material properties show low smoke propagation, density and toxicity. They are supplied pre-cut and have been formatted into a convenient "ladder" system. Simply print and press out the required TAGLF and apply with cable ties, they are also suitable for retrofit purposes.
Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device.Identification tags for cable bundle "Ladder Style", thermal transfer
Print with HellermannTyton's premium range of thermal printers and ribbons or a laser beam marking device.Identification tags for cable bundle "Ladder Style", thermal transfer
HellermannTyton 556-83011 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- TT431, TT4030
- Colour
- Yellow (YE)
- Fixation Method
- Others
- Mounting method
- Others
- Package Quantity per
- box
- Pack Cont.
- 200pcs.
- PART DESCRIPTION
- TAGLF20X51-6YE-PO-X-YE
- Printable (Yes/No)
- Yes
- Product Family
- TAGLF – Rail - Limited Fire Hazard Tiptags
- Product Group
- Identification tags for cable bundle "Ladder Style", thermal transfer
- Short Description
- Identification tags for cable bundle in ladder style TAGLF 51x20 mm yellow 200 pcs./reel
- Variant
- Thin-Wall
- With label space
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026542157
- Packaging 1 - Height (m)
- 0.098m
- Packaging 1 - Length (m)
- 0.184m
- Packaging 1 - Qty
- 200
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.00321m³
- Packaging 1 - Weight (kg)
- 0.488kg
- Packaging 1 - Width (m)
- 0.178m
- Packaging 2 - Height (m)
- 0.098m
- Packaging 2 - Length (m)
- 0.184m
- Packaging 2 - Qty
- 200
- Packaging 2 - Type
- pack
- Packaging 2 - Volume (m³)
- 0.0032m³
- Packaging 2 - Weight (kg)
- 0.606kg
- Packaging 2 - Width (m)
- 0.178m
- Weight
- 0.37kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- EN 45545-2 Results
- R22 HL3, R23 HL3
- Flammability
- self-extinguishing
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Operating Temperature - °C
- -40 °C to +105 °C
- Oxygen Index
- 32.7%
- Recommended Ribbon Type
- TTDTHOUT
- Specifications
- EN 45545-2:2013 , MIL-STD-202G Method 215K, SAE - AS81531
More Information
- ETIM 6.0
- EC001530
- ETIM 7.0 Key
- EC001530
- UNSPSC Key
- 39131504
Product Dimensions
- Length (L)
- 51.0mm
- Print Method
- Thermal transfer or laser beam
- Strap Width max. (G)
- 4.6mm
- 0.18"
- Width (W)
- 20.0mm
