Description

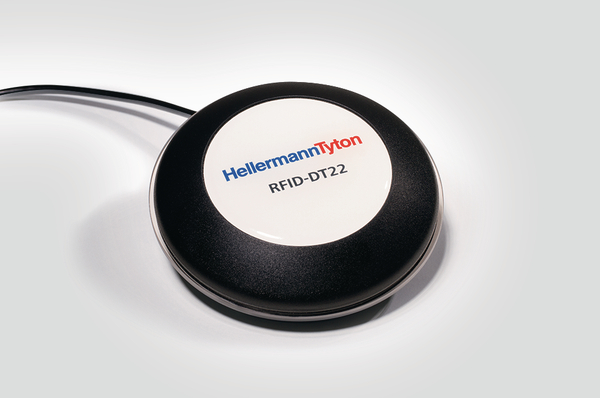

The RFID-DT22 desktop reader for stationary use has been designed to read and write from/to high frequency (HF 13.56 MHz) transponders fitted to HellermannTyton RFID cable ties and accessories. The reader acts as an interface to computer systems and databases. Radio waves transmit the data from the transponder to the reader, so that contactless reading of information is possible. RFID system solutions can make a significant contribution to improving the process reliability and quality in a variety of industries.RFID Readers
HellermannTyton 556-00702 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Connection for external antenna
- No
- Max. transmission range
- 120mm
- Package Quantity per
- box
- Pack Cont.
- 1pc.
- PART DESCRIPTION
- RFID-DT22-HF-ABS-BK
- Product Family
- RFID Desktop Reader
- Product Group
- RFID Readers
- Short Description
- RFID desktop reader (13.56 MHz) 110x110x30 mm
- Transmission rate reading max.
- 848Kbps
- Transmission rate writing max.
- 848Kbps
- Type of electric connection
- Others
- Type of voltage (input voltage)
- DC
Logistics and Packaging
- EAN / GTIN
- 4031026563671
- Packaging 1 - Height (m)
- 0.05m
- Packaging 1 - Length (m)
- 0.203m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pack
- Packaging 1 - Volume (m³)
- 0.00138m³
- Packaging 1 - Weight (kg)
- 0.2kg
- Packaging 1 - Width (m)
- 0.136m
- Weight
- 0.2kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Hazardous good
- No
- Interfaces
- USB, HID
- IP-Rating
- IP51
- Material
- Acrylonitrile Butadiene Styrene (ABS)
- Operating Temperature - °C
- -25 °C to +60 °C
- Radio protocol
- ISO 15693, ISO 14443A
More Information
- ETIM 6.0
- EC002998
- ETIM 7.0 Key
- EC002998
Product Dimensions
- Frequency
- 13.56 MHz (HF)
- Height (H)
- 30.0mm
- Length (L)
- 110.0mm
- Width (W)
- 110.0mm
