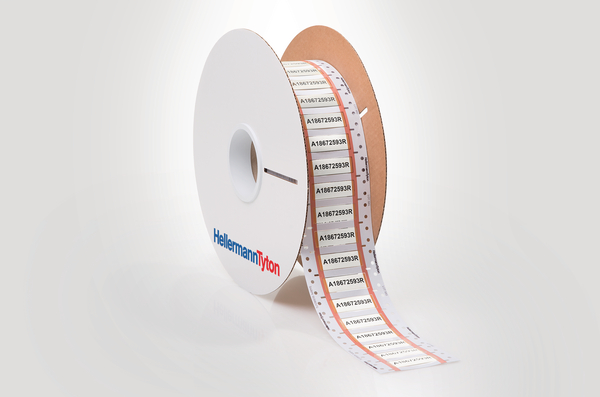

HellermannTyton 533-65002
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
TLFD DS is an innovative 2:1 heat shrink marker which is halogen free, low fire hazard and fluid resistant. This rail and EN approved material is supplied pre-cut and formatted into a convenient "ladder" system.
The TLFD DS marker’s material properties are ideal for applications where fire protection is of great importance. TLFD DS shows low smoke propagation, density and toxicity and is also ideal for applications where resistance to organic fluids, common fuels, lubricants and solvents properties are required.
The pre-cut format not only allows printing on both sides of the marker but the user can also easily choose and pick each required marker. The tubing has been especially prepared so that the print performance is excellent at all times using HellermannTyton's printer range.Shrinkable markers "Ladder Style", thermal transfer
The TLFD DS marker’s material properties are ideal for applications where fire protection is of great importance. TLFD DS shows low smoke propagation, density and toxicity and is also ideal for applications where resistance to organic fluids, common fuels, lubricants and solvents properties are required.
The pre-cut format not only allows printing on both sides of the marker but the user can also easily choose and pick each required marker. The tubing has been especially prepared so that the print performance is excellent at all times using HellermannTyton's printer range.Shrinkable markers "Ladder Style", thermal transfer
HellermannTyton 533-65002 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- TT431, TT431-BV, TT4030, TrakMark DS
- Colour
- White (WH)
- Fixation Method
- Others
- Mounting method
- Others
- Package Quantity per
- carton
- Pack Cont.
- 5000pcs.
- PART DESCRIPTION
- TLFD32DS-1X50WH-PO-X-WH
- Printable (Yes/No)
- Yes
- Product Family
- TLFD DS – 2:1 Rail Limited Fire Hazard, fluid resistant "Ladder Style"
- Product Group
- Shrinkable markers "Ladder Style", thermal transfer
- Short Description
- Shrinkable markers ladder style, thermal transfer, 2:1 (3.2 mm/1.6 mm) white 50 mm, 5000 pcs.
- Shrink Ratio
- 2:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
- With label space
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026592411
- Packaging 1 - Height (m)
- 0.098m
- Packaging 1 - Length (m)
- 0.3m
- Packaging 1 - Qty
- 5000
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.00882m³
- Packaging 1 - Weight (kg)
- 3.15kg
- Packaging 1 - Width (m)
- 0.3m
- Packaging 2 - Height (m)
- 0.118m
- Packaging 2 - Length (m)
- 0.334m
- Packaging 2 - Qty
- 5000
- Packaging 2 - Type
- carton
- Packaging 2 - Volume (m³)
- 0.0125m³
- Packaging 2 - Weight (kg)
- 3.497kg
- Packaging 2 - Width (m)
- 0.318m
- Weight
- 3.15kg
Material and Specifications
- Dielectric Strength
- >19.7 kV/mm
- ELV compliant (Article 4 - 2)
- YES
- EN 45545-2 Results
- R22 HL3, R23 HL3
- Halogenfree
- Yes
- Hazardous good
- No
- Limited Fire Hazard
- Yes
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +120 °C
- Operating Temperature - °C
- -55 °C to +125 °C
- Recommended Ribbon Type
- TTDTHOUT
- Specifications
- DIN EN 45545-2 (02/2016), DIN EN 50343:2014 Appendix H
More Information
- ETIM 6.0
- EC001530
- ETIM 7.0 Key
- EC001530
Product Dimensions
- Length (L)
- 50.0mm
- Print Method
- Thermal transfer
- Recov. ∅ d max.
- 0.063"
- 1.6mm
- Supplied ∅ D min.
- 0.134"
- 3.41mm
- Wall (WT)
- 0.020"
- 0.51mm
