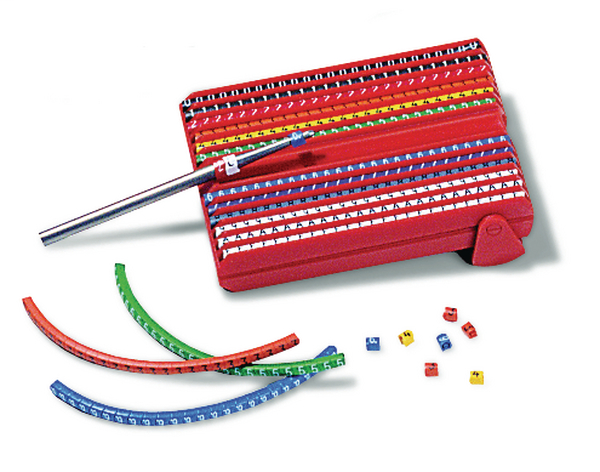

HellermannTyton 518-06013

Base Data

• Application Tool
  • TJC1-3
• Colour
  • White (WH), yellow (YE), international resistor colour code (CC)
• Colour of Print
  • Black (BK)
• Content
  • HGCC1-3: 50 each of markers 0 to 3 and 25 markers size 4 to 9 in the international resistor colour code; 25 each of A, E, L, N, R, S, T, +, - and in white; PTFE-coated applicator tool TJC. HGCC4-9: 25 each of markers 0 to 9 in the international resistor colour code; A, E, L, N, R, S, T, +, - and in white; PTFE-coated TJC applicator tool. Individual sets available as an option. The refill pack for the cassette contains one basic set without TJC applicator tool.
• Fixation Method
  • Suspend
• Mounting method
  • Suspend
• Package Quantity per
  • pcs.
• Pack Cont.
  • 1pc.
• PART DESCRIPTION
  • HGPC1-3-PVC-Special
• Short Description
  • Cable Marker Kit (25 markers for bundle ∅ 1-3: 0-9, A-Z, standard electrical symbols)
• Variant
  • Other
• With label space
  • No

Logistics and Packaging

• EAN / GTIN
  • 5022660520167
• Packaging 1 - Height (m)
  • 0.030m
• Packaging 1 - Length (m)
  • 0.102m
• Packaging 1 - Qty
  • 1
• Packaging 1 - Type
  • pcs.
• Packaging 1 - Volume (m³)
  • 0.00024m³
• Packaging 1 - Weight (kg)
  • 0.0770kg
• Packaging 1 - Width (m)
  • 0.078m
• Weight
  • 0.1kg

Material and Specifications

• Flammability
  • UL 94 V0 (3 mm)
• Material
  • Flexible Polyvinyl Chloride, cadmium free (PVC)
• Operating Temperature - °C
  • -65 °C to +105 °C, intermittent +135 °C
• Specifications
  • BS-2782-540B, BS-6746C, IEC 757

More Information

• ETIM 6.0
  • EC001530
• ETIM 7.0 Key
  • EC001530

Product Dimensions

• Bundle ∅ max.
  • 3.00mm
• Bundle ∅ min.
  • 1.0mm
• Length (L)
  • 3.5mm
• Print Method
  • Hotfoil
