Description

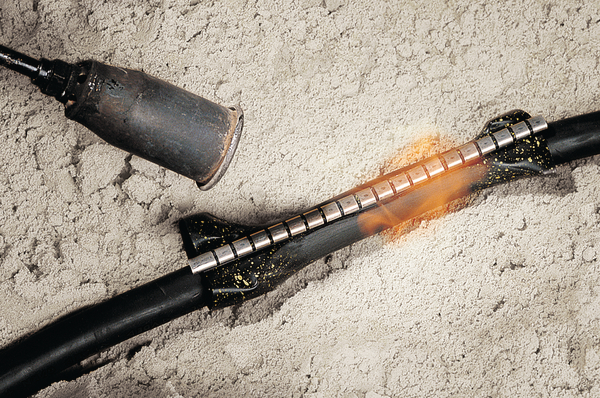

RMS wrap-around sleeves are closed with a steel channel. The sleeve is adhesive lined and will effectively seal the cable after shrinkage. RMS sleeves provide fast, watertight and reliable insulation.Heat shrinkable cable repair sleeves
HellermannTyton 450-20010 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, E4500
- Cable ∅ max
- 45mm
- Cable ∅ min
- 20mm
- Colour
- Black (BK)
- Features and Benefits
- The Cable Repair Sleeves have Thermo-Chromatic Paint (TCP) dots on the outside. These TCP dots will disappear during heat shrinking indicating the sleeve has been sufficiently heated.
- Marking Text
- RMS, size
- Pack Cont.
- 250.0mm
- PART DESCRIPTION
- RMS 52-15-PO-X-BK
- Product Family
- RMS
- Product Group
- Heat shrinkable cable repair sleeves
- Short Description
- Heat Shrinkable Cable Repair Sleeve 52/15 length 25cm black
- Shrink Ratio
- up to 4.5:1
- Variant
- Shrink Cast
Logistics and Packaging
- EAN / GTIN
- 4031026406503
- Packaging 1 - Height (m)
- 0.032m
- Packaging 1 - Length (m)
- 0.26m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00191m³
- Packaging 1 - Weight (kg)
- 0.144kg
- Packaging 1 - Width (m)
- 0.23m
- Packaging 3 - Height (m)
- 0.1m
- Packaging 3 - Length (m)
- 0.28m
- Packaging 3 - Qty
- 5
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0064m³
- Packaging 3 - Weight (kg)
- 1.222kg
- Packaging 3 - Width (m)
- 0.23m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 770
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 209.188kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.144kg
Material and Specifications
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 30 kV/mm
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- not flame retardant
- Halogenfree
- Yes
- Hazardous good
- No
- Limited Fire Hazard
- No
- Material
- Polyolefin, chemically cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +110 °C
- Operating Temperature - °C
- -40 °C to +120 °C
- Softening Point Adhesive
- +105 °C
- Tensile Strength
- 17.5MPa
- UL Listed (US and Canada)
- No
- UL Recognized (US and Canada)
- No
- UV-Resistant (Yes/No)
- Yes
More Information
- ETIM 6.0
- EC000219
- ETIM 7.0 Key
- EC000219
Product Dimensions
- Length (L)
- 250.0mm
- Longitudinal Change After Shrinkage
- -10 % max.
- Recov. ∅ d max.
- 15.0mm
- Supplied ∅ D min.
- 52.0mm
- Wall (WT)
- 2.30mm
