Description

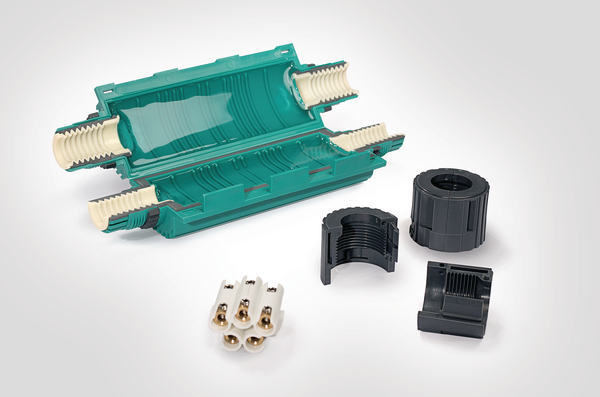

Reliseal gel cable joints are suitable for cable connections under extreme conditions, outdoors and underground. They are universal straight-through joints with a protection class IP68 and consist of a solid polypropylene shell (PP) filled with RELICON gel. The system is tested according to EN 60529:1991. They can be used for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR, etc. Reliseal fulfils the highest requirements for electrical installations and offers mechanical protection, insulation and sealing in one work step. The installer saves time and requires no special installation tools.
Application: In low-voltage electrical networks as straight-through joint. In general connections in industrial buildings, underground, submerged, outdoor, indoor and in wiring ducts.Gel cable joint with connector
Application: In low-voltage electrical networks as straight-through joint. In general connections in industrial buildings, underground, submerged, outdoor, indoor and in wiring ducts.Gel cable joint with connector
HellermannTyton 435-01661 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Green (GN)
- Content
- Gel shell filled with RELICON gel Screw system cable-gland for strain relief Reduce gaskets for various cable diameters Installation instruction Compression connector 3 x 4 mm² to 5 x 10 mm² Allen key
- Package Quantity per
- box
- Pack Cont.
- 1pc.
- PART DESCRIPTION
- Reliseal V510-PP/SI-GN
- Product Family
- RELICON Reliseal
- Product Group
- Gel cable joint with connector
- Short Description
- Gel cable joint 3x4 mm², 5x10 mm², green
Logistics and Packaging
- EAN / GTIN
- 4031026539904
- Packaging 1 - Height (m)
- 0.06m
- Packaging 1 - Length (m)
- 0.24m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pack
- Packaging 1 - Volume (m³)
- 0.00166m³
- Packaging 1 - Weight (kg)
- 0.573kg
- Packaging 1 - Width (m)
- 0.115m
- Packaging 3 - Height (m)
- 0.375m
- Packaging 3 - Length (m)
- 0.42m
- Packaging 3 - Qty
- 25
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0614m³
- Packaging 3 - Weight (kg)
- 14.826kg
- Packaging 3 - Width (m)
- 0.39m
- Packaging 4 - Height (m)
- 1.27m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 300
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.219m³
- Packaging 4 - Weight (kg)
- 198.912kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.573kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Hazardous good
- No
- Material
- Polypropylene (PP), Silicone (SI)
- Operating Temperature - °C
- -20 °C to +90 °C
- Shelf Life
- Unlimited
- Specifications
- EN 60529:1991
More Information
- ETIM 6.0
- EC001170
- ETIM 7.0 Key
- EC001170
- UNSPSC Key
- 39121452
Product Dimensions
- Conductor Cross Section Main Cable (max.)
- 5 x 10mm²
- Conductor Cross Section Main Cable (min.)
- 3 x 4mm²
- Connector
- Connector block
- Height (H)
- 49mm
- Length (L)
- 235mm
- Width (W)
- 69mm
