Description
Relilight gel cable joints are designed for light installations, especially LED lighting. They are tested according to EN 60998-2-1: 2004 and offer IP68 protection class. The moulding shells are also flame retardant. Depending on the connector type, Relilight can be used either for straight-through or as branch joints. They are suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc. The silicone-based RELICON gel in the Relilight cable joints provides insulation, sealing and mechanical protection in one step. Furthermore, they reduce the workload and total cost of installation.
Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, underground, submerged, outdoor, indoor and in wiring ducts.Gel Cable Joint with Connector
Application: In low-voltage electrical networks as straight-through or branch joints, e.g. for outdoor light installations, underground, submerged, outdoor, indoor and in wiring ducts.Gel Cable Joint with Connector
HellermannTyton 435-01654 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Content

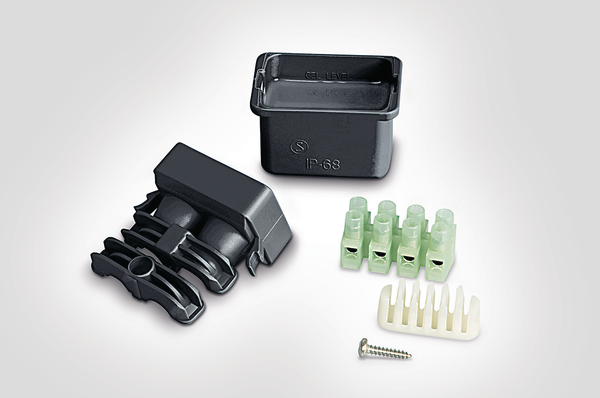

- Gel shell filled with RELICON gel Adapter for strain relief Installation instruction Connector block 4 x 0,5 mm² to 4 x 1 mm² Core spacer 6 x 0,35 mm² - 6 x 0,5 mm² Screws
- No. of Wires
- 6
- Package Quantity per
- box
- Pack Cont.
- 1Bag
- PART DESCRIPTION
- Relilight V41U1-PA66V0/SI-BK
- Product Family
- RELICON Relilight V 41 U1
- Product Group
- Gel Cable Joint with Connector
- Short Description
- Gel cable joint 4 x 0,5 - 4 x 1, Abz. 6x0,35 - 6x0,50
- Variant
- Gel
- Voltage range
- 12V - 24V
Logistics and Packaging
- EAN / GTIN
- 4250596413760
- Packaging 1 - Height (m)
- 0.03m
- Packaging 1 - Length (m)
- 0.23m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00104m³
- Packaging 1 - Weight (kg)
- 0.053kg
- Packaging 1 - Width (m)
- 0.15m
- Packaging 3 - Height (m)
- 0.27m
- Packaging 3 - Length (m)
- 0.6m
- Packaging 3 - Qty
- 100
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0648m³
- Packaging 3 - Weight (kg)
- 8.616kg
- Packaging 3 - Width (m)
- 0.4m
- Weight
- 0.053kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Hazardous good
- No
- Material
- Polyamide 6.6 V0 (PA66V0), Silicone (SI)
- Operating Temperature - °C
- -30 °C to +130 °C
- Shelf Life
- Unlimited
More Information
- ETIM 6.0
- EC001169
- ETIM 7.0 Key
- EC001169
Product Dimensions
- Cable Diameter Main Cable
- 8.0-10mm
- Conductor Cross Section Main Cable (max.)
- 4 x 1 / 6 x 0.5mm²
- Conductor Cross Section Main Cable (min.)
- 4 x 0.5 / 6 x 0.35mm²
- Connector
- Connector block
- Height (H)
- 29.5mm
- Length (L)
- 38mm
- Width (W)
- 42.5mm
