HellermannTyton 435-00655
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

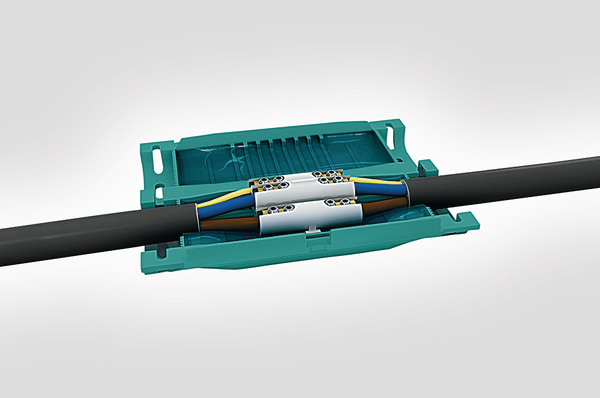

RELICON Relifix gel technology offers several advantages. It is quick and easy to install. The moulding shells are provided with a film hinge and are made from thick-walled, tough and impact resistant polypropylene (PP). The Relicon gel in the shells insulates and seals the complete connection as the joint is closed. Depending on the connector type, Relifix can be used as a universal straight-through or branch joint. It is suitable for jointing on polymeric cables and wires made of PVC, XLPE, PE, EPR etc.
Application: In low-voltage electrical networks as straight-through and/or branch joint, e.g. underground, submerged, outdoor, indoor and wiring ducts.Gel cable joint with connector
Application: In low-voltage electrical networks as straight-through and/or branch joint, e.g. underground, submerged, outdoor, indoor and wiring ducts.Gel cable joint with connector
HellermannTyton 435-00655 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Green (GN)
- Content
- Moulding shells filled with RELICON gel Installation instructions Connector Cable ties Allen key (not for type V31,5)
- No. of Wires
- 5
- Package Quantity per
- box
- Pack Cont.
- 1Set
- PART DESCRIPTION
- Relifix V516-PP/SI-GN
- Product Family
- RELICON Relifix V516
- Product Group
- Gel cable joint with connector
- Short Description
- Gel cable joint 3x1,5 - 5x16, 3x1,5 - 5x2,5
- Variant
- Gel
Logistics and Packaging
- EAN / GTIN
- 4250596414606
- Packaging 1 - Height (m)
- 0.053m
- Packaging 1 - Length (m)
- 0.185m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pack
- Packaging 1 - Volume (m³)
- 0.00127m³
- Packaging 1 - Weight (kg)
- 0.465kg
- Packaging 1 - Width (m)
- 0.13m
- Packaging 3 - Height (m)
- 0.395m
- Packaging 3 - Length (m)
- 0.42m
- Packaging 3 - Qty
- 40
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0655m³
- Packaging 3 - Weight (kg)
- 19.1kg
- Packaging 3 - Width (m)
- 0.395m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 480
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 250.2kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.465kg
Material and Specifications
- ELV compliant (Article 4 - 2)
- YES
- Hazardous good
- No
- Material
- Polypropylene (PP), Silicone (SI)
- Operating Temperature - °C
- -20 °C to +90 °C
- Shelf Life
- Unlimited
- Specifications
- EN 50393:2006
More Information
- ETIM 6.0
- EC001170
- ETIM 7.0 Key
- EC001170
Product Dimensions
- Cable Diameter Main Cable
- 9-22mm
- Conductor Cross Section Main Cable (max.)
- 5 x 16mm²
- Conductor Cross Section Main Cable (min.)
- 3 x 6mm²
- Height (H)
- 40mm
- Length (L)
- 180mm
- Width (W)
- 69mm
