Description

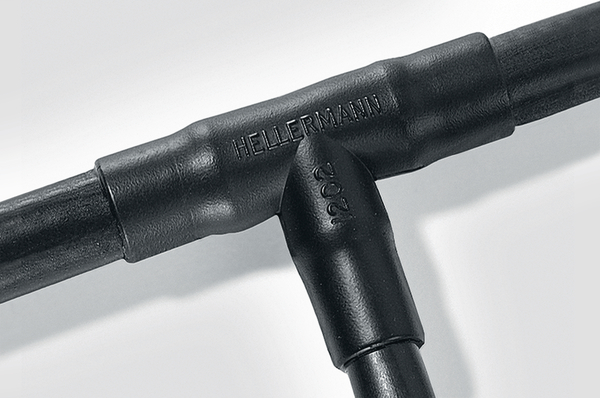

Heat Shrinkable moulded shapes for use in Electrical and Electronic Cable Harness ApplicationsT-Shapes, VG style/MIL style
HellermannTyton 412-02180 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Colour
- Black (BK)
- Package Quantity per
- pcs.
- Pack Cont.
- 1pc.
- PART DESCRIPTION
- 1202-1-G-PO-X-BK
- Product Family
- Helashrink 1200 Series
- Product Group
- T-Shapes, VG style/MIL style
- Short Description
- T-Shape VG-Style black, PO-X
- Variant
- For 2-core cables
Logistics and Packaging
- EAN / GTIN
- 5022660635380
- Packaging 1 - Height (m)
- 0.02m
- Packaging 1 - Length (m)
- 0.13m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00026m³
- Packaging 1 - Weight (kg)
- 0.01kg
- Packaging 1 - Width (m)
- 0.1m
- Weight
- 0.01kg
Material and Specifications
- Designation as per VG-Norm
- VG 95343 T08 A 010 A
- Dielectric Strength
- 14 kV/mm according to ASTM D2671
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- ASTM D635
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Nato number
- K1793
- Operating Temperature - °C
- -75 °C to +150 °C
- Specifications
- DEF STAN 59-97/3, VG 95343-8:2016-03
More Information
- ETIM 6.0
- EC002464
- ETIM 7.0 Key
- EC002464
Product Dimensions
- Flexibility
- semi rigid
- ∅H/J max. b
- 7mm
- ∅H/J min. a
- 13.0mm
- ∅H max. b
- 7.0mm
- ∅H min. a
- 13.0mm
- HW ± 20 %
- 1.5mm
- HW ± 30 %
- 1.5mm
- HW/JW ± 10%
- 1.5mm
- ∅J max. b
- 7.0mm
- ∅J min. a
- 13.0mm
- JW ± 20 %
- 1.5mm
- JW ± 30 %
- 1.5mm
- ∅K max. b
- 7mm
- ∅K min. a
- 13.0mm
- KW ± 20 %
- 1.5mm
- M nom.
- 37.0mm
- P ± 10 %
- 59mm
- R ± 10 %
- 29.5mm
- S ± 10 %
- 29.2mm
