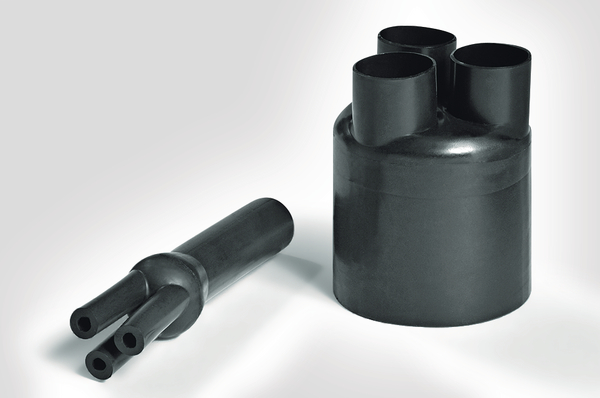

HellermannTyton 403-42006
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
Cable breakouts are manufactured from a tough cross-linked polyolefin containing a flame retardant. This allows the breakouts to be used for both interior and exterior applications. They offer excellent electrical and mechanical protection.
Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.3-Way Outlet Shapes, Breakout Boots
Cable breakouts are supplied with an adhesive inner coating for reliable environmental sealing, and are available for 2, 3, 4, 5 and 6 core cables.3-Way Outlet Shapes, Breakout Boots
HellermannTyton 403-42006 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Colour
- Black (BK)
- Package Quantity per
- bag
- Pack Cont.
- 1pc.
- PART DESCRIPTION
- 342-1-B8W2-PO-X-BK
- Product Family
- Helashrink 300 Series, in line, low voltage
- Product Group
- 3-Way Outlet Shapes, Breakout Boots
- Shrink Ratio
- up to 3:1
- Variant
- For 3-core cables
Logistics and Packaging
- EAN / GTIN
- 5022660458613
- Packaging 1 - Height (m)
- 0.48m
- Packaging 1 - Length (m)
- 0.4m
- Packaging 1 - Qty
- 25
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.0768m³
- Packaging 1 - Weight (kg)
- 4.55kg
- Packaging 1 - Width (m)
- 0.4m
- Weight
- 4.55kg
Material and Specifications
- Adhesive
- W2
- Dielectric Strength
- 15 kV/mm
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- ASTM D635
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +135 °C
- Operating Temperature - °C
- -55 °C to +100 °C
- Tensile Strength
- 15MPa
More Information
- ETIM 6.0
- EC002464
- ETIM 7.0 Key
- EC002464
Product Dimensions
- Bundle ∅ max.
- 400mm
- Bundle ∅ min.
- 185mm
- Flexibility
- semi rigid
- ∅H max. b
- 40.0mm
- ∅H min. a
- 115.0mm
- HW ± 20 %
- 4.0mm
- ∅J max. b
- 20mm
- ∅J min. a
- 45.0mm
- JW ± 20 %
- 3.5mm
- P ± 10 %
- 230.0mm
- R ± 10 %
- 45.0mm
- Recov. ∅ d max.
- 35.0mm
- S nom.
- 65.0mm
- Supplied ∅ D min.
- 110.0mm
- Wire Size Range (mm²)
- 185-400mm
