HellermannTyton 380-03004
Estimated Delivery between and with free shipping.
Overnight shipping is also available.
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The black tubing is mainly used for environmental sealing of splices and connectors. The transparent tubing is typically used for protection of cable markers.Heat shrinkable tubing 3:1 in a kit
HellermannTyton 380-03004 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application 2
- ShrinKit 321-A tubing seals against moisture and dust and with the ideal shrink ratio of 3:1 protects a wide variety of electrical applications.
- Application Tool
- H5002, H5004, E4500
- Colour
- Black (BK), Transparent (CL)
- Content
- This kit contains a range of general purpose tubing lengths clearly sorted. Three different sizes are included in black and transparent.
- Package Quantity per
- kit
- Pack Cont.
- 1Set
- PART DESCRIPTION
- ShrinKit 321-A Basic-PO-X-BK/CL
- Printable (Yes/No)
- No
- Product Family
- ShrinKit 321-A Basic - with adhesive liner
- Product Group
- Heat shrinkable tubing 3:1 in a kit
- Short Description

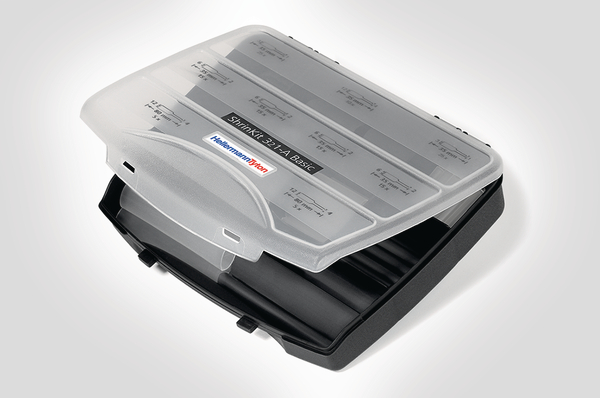

- ShrinKit 321 is a family of five heat shrink tubing assortments in attractive and handy assembly kits. The range consists of ShrinKit 321 Universal, ShrinKit 321 Universal Basic, ShrinKit 321 Basic, ShrinKit 321-A (a dual wall tubing) and ShrinKit 321-A Basic. With their ideal shrink ratio of 3:1 these products replace many differently sized tubing solutions by fitting almost any heat shrink requirements. Choosing the required product is simplicity itself as the tubings are clearly identified by size, length and content printed on every compartment of the assortment boxes.
- Heat Shrinkable Tubing 3:1 with adhesive liner Kit black
- Shrink Ratio
- 3:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026300283
- Packaging 1 - Height (m)
- 0.04m
- Packaging 1 - Length (m)
- 0.177m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pack
- Packaging 1 - Volume (m³)
- 0.00134m³
- Packaging 1 - Weight (kg)
- 0.43kg
- Packaging 1 - Width (m)
- 0.189m
- Packaging 3 - Height (m)
- 0.1m
- Packaging 3 - Length (m)
- 0.6m
- Packaging 3 - Qty
- 22
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.024m³
- Packaging 3 - Weight (kg)
- 9.96kg
- Packaging 3 - Width (m)
- 0.4m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 242
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 130.56kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.43kg
Material and Specifications
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 15 kV/mm according to ASTM D2671
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- self-extinguishing (except for transparent)
- Hazardous good
- No
- Insulation Class
- A (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +110 °C
- Operating Temperature - °C
- -55 °C to +110 °C
- Softening Point Adhesive
- +120 °C
- Specifications
- SAE - AMS - DTL-23053/4 Class 3 (except clear)
- UL Listed (US and Canada)
- No
- UL Recognized (US and Canada)
- No
More Information
- ETIM 6.0
- EC001049
- ETIM 7.0 Key
- EC001049
Product Dimensions
- Longitudinal Change After Shrinkage
- +1 %/-15 % max.
