HellermannTyton 342-30070
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

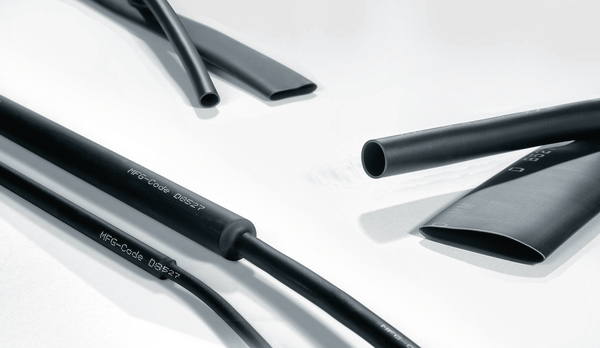

TE28 is used for long-term protection of cables and wire harnesses in military equipment, motor sports and aviation.Heat Shrinkable Tubing 2:1 - Elastomer
HellermannTyton 342-30070 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Features and Benefits
- TE28 is a thin wall, very flexible, high performance elastomeric heat shrink tubing. This tubing is used in aerospace, defence, railway and automotive harness applications. TE28 is resistant to diesel, aviation and hydrolic fluids. It provides a reliable protection against abrasion and mechanical damage and is very suitable for protecting cables and wire harnesses.
- Heat Shock Test
- 4h/215°C
- Marking Text
- as per VG
- Package Quantity per
- reel
- Pack Cont.
- 30m
- PART DESCRIPTION
- TE28 25.4/12.7-POA-BK
- Printable (Yes/No)
- No
- Product Family
- TE28 - light weight
- Product Group
- Heat Shrinkable Tubing 2:1 - Elastomer
- Short Description
- Heat Shrinkable Tubing 2:1 Thin Wall VG-Norm 25,4/12,7
- Diesel resistant shrink tubing
- Shrink Ratio
- 2:1
- Tensile Strength at Heat Shock
- 10MPa
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026432724
- Packaging 1 - Height (m)
- 0.4m
- Packaging 1 - Length (m)
- 0.4m
- Packaging 1 - Qty
- 30
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.016m³
- Packaging 1 - Weight (kg)
- 3.33kg
- Packaging 1 - Width (m)
- 0.1m
- Reel Length
- 98.42ft
- 30m
- Weight
- 3.33kg
Material and Specifications
- Designation as per VG-Norm
- VG 95343 T05 D 019 A
- Dielectric Strength
- 20 kV/mm
- Elongation at break
- 420%
- ELV compliant (Article 4 - 2)
- YES
- Halogenfree
- No
- Hazardous good
- No
- Material
- Elastomer, cross-linked (POA)
- Min. Shrink Temperature - °C
- +170 °C
- Operating Temperature - °C
- -75 °C to +150 °C
- Specifications
- VG 95343-5:2006-06
- Tensile Strength
- 18MPa
- Water Absorption
- 1.0%
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Longitudinal Change After Shrinkage
- -10 % max.
- Recov. ∅ d max.
- 12.7mm
- .5"
- Supplied ∅ D min.
- 25.4mm
- 1"
- Wall (WT)
- 1.05mm
- .04"
