HellermannTyton 333-30152
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

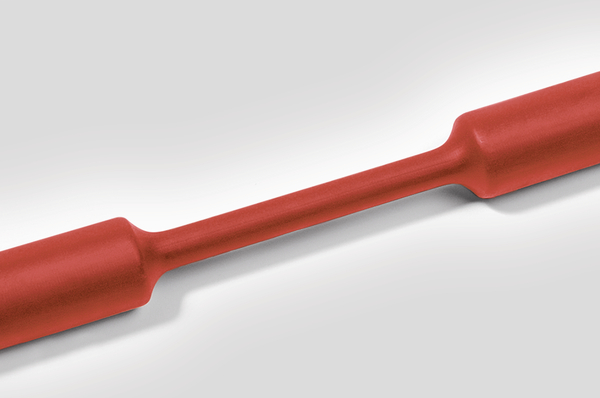

If higher fire protection is a requirement heat shrinkable tubing TF31 is a good choice. It is used for protection, insulation and identification wires, cables and light duty harnesses.Heat shrinkable tubing 3:1 - flexible and coloured
HellermannTyton 333-30152 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Behaviour at Heat Shock
- not dripping, not fluid, not cracking
- Colour
- Red (RD)
- Heat Aging Test
- 168h/175°C
- Heat Shock Test
- 4h/250°C
- Minimum Elongation At Heat Aging
- 420%
- Package Quantity per
- reel
- Pack Cont.
- 30m
- PART DESCRIPTION
- TF31-1.5/0.5-PO-X-RD
- Printable (Yes/No)
- Yes
- Product Family
- TF31
- Product Group
- Heat shrinkable tubing 3:1 - flexible and coloured
- Short Description
- Heat Shrinkable Tubing 3:1 flexible 1.5/0.5 red
- Shrink Ratio
- 3:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026226477
- Packaging 1 - Height (m)
- 0.32m
- Packaging 1 - Length (m)
- 0.32m
- Packaging 1 - Qty
- 30
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.00614m³
- Packaging 1 - Weight (kg)
- 0.09kg
- Packaging 1 - Width (m)
- 0.06m
- Reel Length
- 30.0m
- Weight
- 0.09kg
Material and Specifications
- Dielectric Strength
- 37 kV/mm
- Elongation at break
- 400 %
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- ASTM D876, UL 224 VW-1, self-extinguishing
- Halogenfree
- No
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +90 °C
- Operating Temperature - °C
- -55 °C to +135 °C
- Specifications
- ANSI/UL 224, CSA-C22.2 No.198.1-99
- Tensile Strength
- 14MPa
- UL-File Number
- E143529
- UL Recognized (US and Canada)
- Yes
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Longitudinal Change After Shrinkage
- +5 %/-15 %
- Recov. ∅ d max.
- 0.5mm
- Supplied ∅ D min.
- 1.5mm
- Wall (WT)
- 0.50mm
