Description

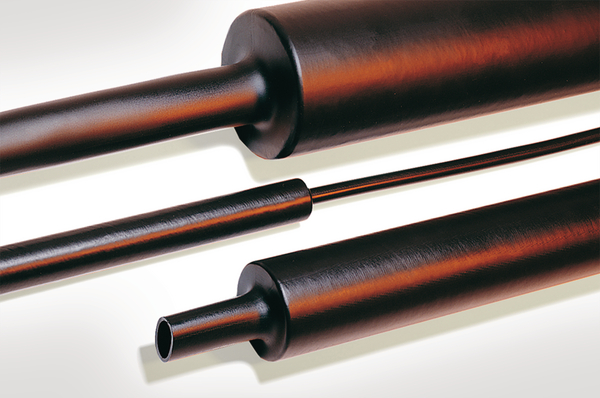

Suitable for insulation and protection of low voltage cable joints and terminations.Heat shrinkable tubing up to 4:1 - 1 m lengths
HellermannTyton 323-50950 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Package Quantity per
- pcs.
- Pack Cont.
- 1pc.
- PART DESCRIPTION
- TREDUX-MA47-95/30-PO-X-BK
- Printable (Yes/No)
- No
- Product Family
- TREDUX MA47 - medium wall adhesive lined
- Product Group
- Heat shrinkable tubing up to 4:1 - 1 m lengths
- Short Description
- Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 95/30 black
- Shrink Ratio
- up to 4:1
- Variant
- Medium-Wall
- Voltage range
- Low and medium voltage
- With inner glue (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026239828
- Packaging 1 - Height (m)
- 0.094m
- Packaging 1 - Length (m)
- 1.068m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.00944m³
- Packaging 1 - Weight (kg)
- 1.26kg
- Packaging 1 - Width (m)
- 0.094m
- Packaging 3 - Height (m)
- 0.132m
- Packaging 3 - Length (m)
- 1.081m
- Packaging 3 - Qty
- 2
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.034m³
- Packaging 3 - Weight (kg)
- 3.16kg
- Packaging 3 - Width (m)
- 0.238m
- Packaging 4 - Height (m)
- 1.201m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 36
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.153m³
- Packaging 4 - Weight (kg)
- 77.88kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.78kg
- 1.92lbs
Material and Specifications
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 20 kV/mm
- Elongation at break
- 400%(ASTM D 2671）
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- not flame retardant
- Halogenfree
- Yes
- Hazardous good
- No
- Insulation Class
- A (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +120 °C
- Operating Temperature - °C
- -55 °C to +110 °C
- Softening Point Adhesive
- +85 °C
- Tensile Strength
- 14MPa
- Volume Resistance
- 10¹⁴ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
- UNSPSC Key
- 39121723
Product Dimensions
- Length (L)
- 1.0m
- Longitudinal Change After Shrinkage
- -10 % max.
- Nominal ∅
- 3-3/4"
- 95mm
- Recov. ∅ d max.
- 1.18"
- 30.0mm
- Supplied ∅ D min.
- 95.0mm
- 3.74"
- Wall (WT)
- 3.0mm
- .12"
- Wire Size Range (mm²)
- 43.0-82.0mm²
