HellermannTyton 323-21150
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

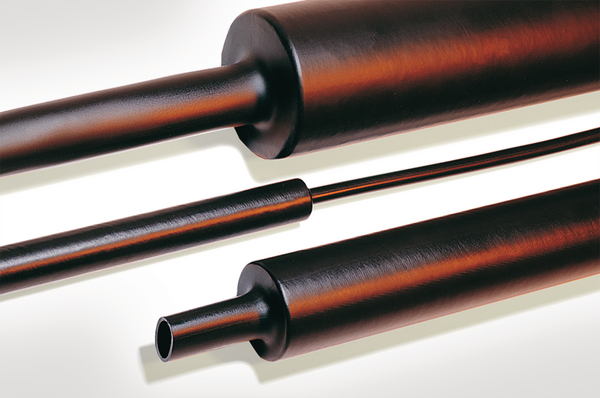

Insulation and protection of low voltage cable joints and terminations above and below ground.Heat shrinkable tubing up to 4:1 - 1 m lengths
HellermannTyton 323-21150 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Package Quantity per
- pcs.
- Pack Cont.
- 3pcs.
- PART DESCRIPTION
- MA47-115/34-PO-X-BK
- Printable (Yes/No)
- No
- Product Family
- MA47 - medium wall adhesive lined
- Product Group
- Heat shrinkable tubing up to 4:1 - 1 m lengths
- Short Description
- Heat Shrinkable Tubing 4:1 Medium Wall Adhesive Lined length 1m 115/34 black
- Shrink Ratio
- up to 4:1
- Size
- 4-1/2"
- Variant
- Medium-Wall
- With inner glue (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026250496
- Packaging 1 - Height (m)
- 0.115m
- Packaging 1 - Length (m)
- 1.2m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- pcs.
- Packaging 1 - Volume (m³)
- 0.01587m³
- Packaging 1 - Weight (kg)
- 0.6kg
- Packaging 1 - Width (m)
- 0.115m
- Packaging 3 - Height (m)
- 0.132m
- Packaging 3 - Length (m)
- 1.08m
- Packaging 3 - Qty
- 3
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0342m³
- Packaging 3 - Weight (kg)
- 2.3kg
- Packaging 3 - Width (m)
- 0.24m
- Packaging 4 - Height (m)
- 1.201m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 72
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.153m³
- Packaging 4 - Weight (kg)
- 76.2kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.6kg
Material and Specifications
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 15 kV/mm
- Elongation at break
- 400
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- not flame retardant
- Halogenfree
- Yes
- Hazardous good
- No
- Insulation Class
- A (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +120 °C
- Operating Temperature - °C
- -55 °C to +110 °C
- Softening Point Adhesive
- +85 °C
- Tensile Strength
- 14MPa
- UL Listed (US and Canada)
- No
- UL Recognized (US and Canada)
- No
- Volume Resistance
- 10¹⁴ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Length (L)
- 1.0m
- Longitudinal Change After Shrinkage
- -10 % max.
- Recov. ∅ d max.
- 34.0mm
- 1.34"
- Supplied ∅ D min.
- 115.0mm
- 4.53"
- Wall (WT)
- .12"
- 3.0mm
