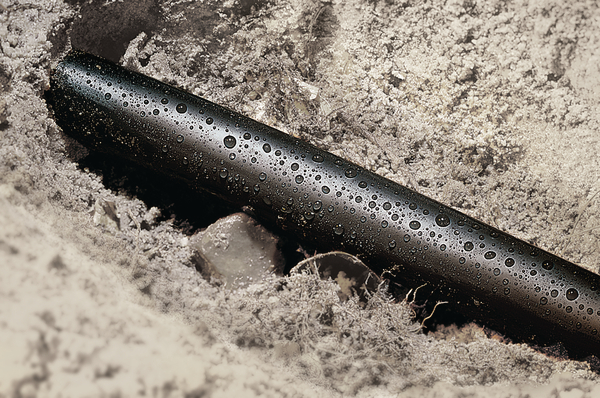

HellermannTyton 321-50510

Base Data

• Colour
  • Black (BK)
• Package Quantity per
  • pcs.
• Pack Cont.
  • 2pcs.
• PART DESCRIPTION
  • TREDUX-HA47-51/16-PO-X-BK
• Printable (Yes/No)
  • No
• Product Family
  • TREDUX HA47 - thick wall adhesive lined
• Product Group
  • Heat shrinkable tubing up to 3.5:1 - 1 m lengths
• Short Description
  • Heat Shrinkable Tubing 3.5:1 Thick Wall Adhesive Lined length 1m 51/16 black
  • With TREDUX HellermannTyton has set a new standard in heat shrink tubing: TREDUX shrinks to a ratio of 3:1.Because of TREDUX’s higher shrink ratio,you do not need such a large selection of tubes to cover different uses. That way you save considerably in the cost of material, storage and logistics. TREDUX tubes are cut to lengths of 1 meter. Securely packed in display boxes, they can be removed individually for occasional use in smaller quantities.
• Shrink Ratio
  • up to 4:1
• Variant
  • Thick-Wall
• Voltage range
  • Low and Medium Voltage
• With inner glue (Yes/No)
  • Yes

Logistics and Packaging

• EAN / GTIN
  • 4031026239897
• Packaging 1 - Height (m)
  • 0.094m
• Packaging 1 - Length (m)
  • 1.068m
• Packaging 1 - Qty
  • 2
• Packaging 1 - Type
  • bag
• Packaging 1 - Volume (m³)
  • 0.00944m³
• Packaging 1 - Weight (kg)
  • 1.436kg
• Packaging 1 - Width (m)
  • 0.094m
• Packaging 3 - Height (m)
  • 0.132m
• Packaging 3 - Length (m)
  • 1.081m
• Packaging 3 - Qty
  • 4
• Packaging 3 - Type
  • carton
• Packaging 3 - Volume (m³)
  • 0.034m³
• Packaging 3 - Weight (kg)
  • 3.512kg
• Packaging 3 - Width (m)
  • 0.238m
• Packaging 4 - Height (m)
  • 1.201m
• Packaging 4 - Length (m)
  • 1.2m
• Packaging 4 - Qty
  • 72
• Packaging 4 - Type
  • pallet
• Packaging 4 - Volume (m³)
  • 1.153m³
• Packaging 4 - Weight (kg)
  • 84.216kg
• Packaging 4 - Width (m)
  • 0.8m
• Weight
  • 2.99lbs
  • 0.956kg

Material and Specifications

• Adhesive
  • Hot melt adhesive
• Dielectric Strength
  • 20 kV/mm
• Elongation at break
  • 400%(ASTM D 2671）
• ELV compliant (Article 4 - 2)
  • YES
• Flammability
  • not flame retardant
• Halogenfree
  • Yes
• Hazardous good
  • No
• Material
  • Polyolefin, cross-linked (PO-X)
• Min. Shrink Temperature - °C
  • +120 °C
• Operating Temperature - °C
  • -55 °C to +110 °C
• Softening Point Adhesive
  • +85 °C
• Tensile Strength
  • 14MPa
• UL Listed (US and Canada)
  • No
• UL Recognized (US and Canada)
  • No
• Volume Resistance
  • 10¹⁴ Ω cm

More Information

• ETIM 6.0
  • EC000217
• ETIM 7.0 Key
  • EC000217
• UNSPSC Key
  • 39121723

Product Dimensions

• Length (L)
  • 1.0m
• Longitudinal Change After Shrinkage
  • -10 % max.
• Nominal ∅
  • 51mm
  • 2"
• Recov. ∅ d max.
  • 0.629"
  • 16.0mm
• Supplied ∅ D min.
  • 2.0"
  • 51.0mm
• Wall (WT)
  • .16"
  • 4.1mm
• Wire Size Range (mm²)
  • 23.0-44.0mm²
