HellermannTyton 321-10180
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

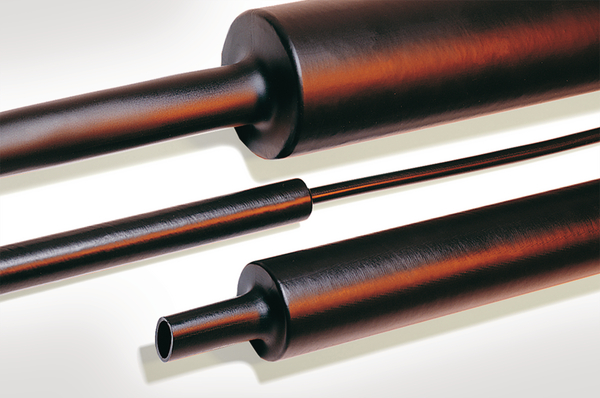

The toughness make HU 47 suitable for exposed applications.Heat Shrinkable Tubing up to 3:1 - 1 m lengths
HellermannTyton 321-10180 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Colour
- Black (BK)
- Package Quantity per
- pcs.
- Pack Cont.
- 40pcs.
- PART DESCRIPTION
- HU47-19/6-PO-X-BK
- Printable (Yes/No)
- No
- Product Family
- HU47 - thick wall unlined
- Product Group
- Heat Shrinkable Tubing up to 3:1 - 1 m lengths
- Short Description
- Heat Shrinkable Tubing 3,5:1 Thick wall unlined in 1m lengths black
- Shrink Ratio
- up to 4:1
- Variant
- Thick-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026240312
- Packaging 1 - Height (m)
- 0.26m
- Packaging 1 - Length (m)
- 1.08m
- Packaging 1 - Qty
- 40
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.06739m³
- Packaging 1 - Weight (kg)
- 2.6kg
- Packaging 1 - Width (m)
- 0.24m
- Packaging 3 - Height (m)
- 0.242m
- Packaging 3 - Length (m)
- 1.081m
- Packaging 3 - Qty
- 40
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0623m³
- Packaging 3 - Weight (kg)
- 3.36kg
- Packaging 3 - Width (m)
- 0.238m
- Packaging 4 - Height (m)
- 1.121m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 480
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.076m³
- Packaging 4 - Weight (kg)
- 61.32kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 2.6kg
Material and Specifications
- Dielectric Strength
- 20 kV/mm
- Elongation at break
- 400%
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- not flame retardant
- Halogenfree
- Yes
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +120 °C
- Operating Temperature - °C
- -55 °C to +110 °C, (outer wall only)
- Tensile Strength
- 14MPa
- UL Listed (US and Canada)
- No
- UL Recognized (US and Canada)
- No
- Volume Resistance
- 10¹⁴ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Length (L)
- 1.0m
- Longitudinal Change After Shrinkage
- -10 % max.
- Recov. ∅ d max.
- 6.0mm
- Supplied ∅ D min.
- 19.0mm
- Wall (WT)
- 2.70mm
