HellermannTyton 319-07600
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

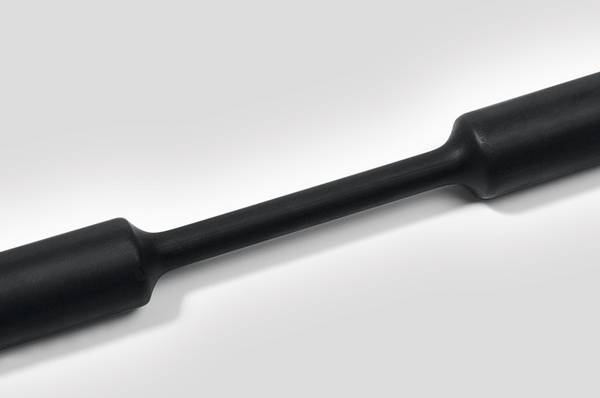

TREDUX thin wall heat shrink tubing is used for general electrical insulation and mechanical protection of cables and wires.Heat shrinkable tubing up to 3:1 - 1 m lengths
HellermannTyton 319-07600 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Behaviour at Heat Shock
- not fluid, not dripping, not cracking
- Behaviour At Low Temperature
- not cracking
- Colour
- Black (BK)
- Heat Aging Test
- 168h/175°C
- Heat Shock Test
- 4h/250°C
- Minimum Elongation At Heat Aging
- 350%
- Package Quantity per
- pcs.
- Pack Cont.
- 3pcs.
- PART DESCRIPTION
- TREDUX-76.2/38.1-PO-X-BK
- Printable (Yes/No)
- Yes
- Product Family
- TREDUX - thin wall
- Product Group
- Heat shrinkable tubing up to 3:1 - 1 m lengths
- Short Description
- Heat Shrinkable Tubing 2:1 length 1 m Thin Wall 76.2/38.1 black
- Shrink Ratio
- 2:1
- Size
- 3"
- Variant
- Thin-Wall
- Voltage range
- 600 V
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026227634
- Packaging 1 - Height (m)
- 0.244m
- Packaging 1 - Length (m)
- 1.081m
- Packaging 1 - Qty
- 3
- Packaging 1 - Type
- carton
- Packaging 1 - Volume (m³)
- 0.06278m³
- Packaging 1 - Weight (kg)
- 0.86kg
- Packaging 1 - Width (m)
- 0.238m
- Packaging 2 - Height (m)
- 0.244m
- Packaging 2 - Length (m)
- 1.081m
- Packaging 2 - Qty
- 3
- Packaging 2 - Type
- carton
- Packaging 2 - Volume (m³)
- 0.0628m³
- Packaging 2 - Weight (kg)
- 1.09kg
- Packaging 2 - Width (m)
- 0.238m
- Packaging 3 - Height (m)
- 0.132m
- Packaging 3 - Length (m)
- 1.081m
- Packaging 3 - Qty
- 6
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.034m³
- Packaging 3 - Weight (kg)
- 2.82kg
- Packaging 3 - Width (m)
- 0.238m
- Packaging 4 - Height (m)
- 1.201m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 144
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.153m³
- Packaging 4 - Weight (kg)
- 88.68kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 0.63kg
Material and Specifications
- CSA Certified
- Yes
- Dielectric Strength
- 20 kV/mm according to ASTM D 150
- Elongation at break
- 500%(ASTM D 2671）
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 224 VW-1
- Hazardous good
- No
- Insulation Class
- B (VDE 0530)
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +100 °C
- Operating Temperature - °C
- -55 °C to +135 °C
- Specifications
- ANSI/UL 224, C22.2 no. 198.1-06, SAE - AMS - DTL-23053/5 Class 1 and 3, SAE - AMS - DTL-23053/5 Class 2 (clear)
- Tensile Strength
- 14MPa
- UL-File Number
- E143529
- UL OCD link
- YDPU8.E143529 YDPU2.E143529
- UL Recognized (US and Canada)
- Yes
- Volume Resistance
- 10¹⁴ Ω cm (ASTM D 876)
- Water Absorption
- 0.15%
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Length (L)
- 1.0m
- Longitudinal Change After Shrinkage
- +/-5 % max.
- Recov. ∅ d max.
- 1.5"
- 38.1mm
- Supplied ∅ D min.
- 76.2mm
- 3.0"
- Wall (WT)
- 1.27mm
- Wire Size Range (mm²)
- 45.8-68.5mm²
