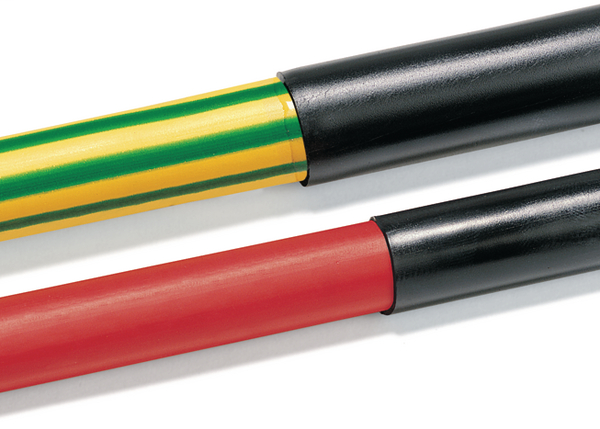

HellermannTyton 318-43200
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description
The high expansion ratio makes it possible to repair most damaged cable jackets without removing connectors.Heat shrinkable tubing adhesive lined - 1.2 m lengths
HellermannTyton 318-43200 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Package Quantity per
- pcs.
- Pack Cont.
- 10pcs.
- PART DESCRIPTION
- TA42-32/8-PO-X-BK
- Printable (Yes/No)
- No
- Product Family
- TA42 - thin wall, 4:1 shrink ratio
- Product Group
- Heat shrinkable tubing adhesive lined - 1.2 m lengths
- Short Description
- Heat Shrinkable Tubing Thin Wall with Adhesive Liner 4:1 L=1,2m 32/8 black
- Shrink Ratio
- 4:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026225029
- Packaging 1 - Height (m)
- 0.25m
- Packaging 1 - Length (m)
- 1.27m
- Packaging 1 - Qty
- 10
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.04128m³
- Packaging 1 - Weight (kg)
- 1.45kg
- Packaging 1 - Width (m)
- 0.13m
- Packaging 3 - Height (m)
- 0.25m
- Packaging 3 - Length (m)
- 1.27m
- Packaging 3 - Qty
- 10
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0413m³
- Packaging 3 - Weight (kg)
- 1.95kg
- Packaging 3 - Width (m)
- 0.13m
- Packaging 4 - Height (m)
- 1.415m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 240
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.358m³
- Packaging 4 - Weight (kg)
- 67.8kg
- Packaging 4 - Width (m)
- 0.8m
- Weight
- 1.45kg
Material and Specifications
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 30 kV/mm
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 224 VW-1
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +110 °C
- Operating Temperature - °C
- -55 °C to +125 °C
- Softening Point Adhesive
- +110 °C
- Specifications
- ANSI/UL 224, SAE - AMS - DTL-23053
- UL-File Number
- E198023
- UL OCD link
- YDTU2.E198023
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Length (L)
- 1.2m
- Longitudinal Change After Shrinkage
- -15 % max.
- Recov. ∅ d max.
- 8.0mm
- Supplied ∅ D min.
- 32.0mm
- Wall (WT)
- 2.55mm
