Description

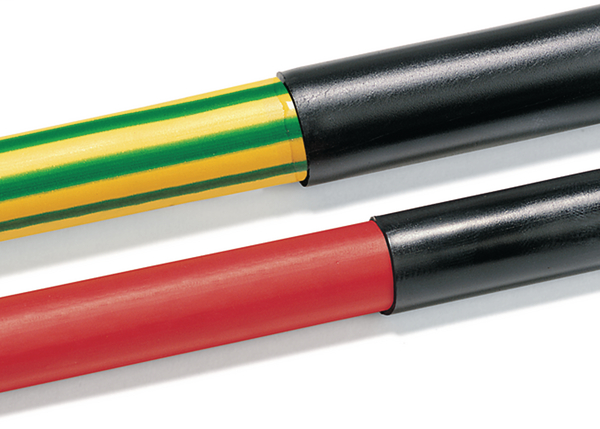

TA40 is a flexible and flame retarded heat shrink tubing designed for the commercial market. The adhesive in the tubing is designed to provide environmental sealing (moisture protection) in back-end connectors, ultra-sonic splices and wire break out applications.Heat shrink tubing, adhesive lined - 1.2 m length
HellermannTyton 317-42400 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Colour
- Black (BK)
- Package Quantity per
- lengths
- Pack Cont.
- 1.2
- PART DESCRIPTION
- TA40 24/6-PO-X-BK
- Printable (Yes/No)
- No
- Product Family
- TA40 thin wall tubing, 4:1 shrink ratio
- Product Group
- Heat shrink tubing, adhesive lined - 1.2 m length
- Short Description
- Heat shrinkable tubing 4:1 (24/6 mm), adhesive lined, 1.2 m, thin wall, black
- Shrink Ratio
- 4:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026224831
Material and Specifications
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 11.8 kV/mm
- Flammability
- ASTM D2671 B
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +120 °C
- Operating Temperature - °C
- -55 °C to +110 °C, (outer wall only)
- UL Listed (US and Canada)
- No
- UL Recognized (US and Canada)
- No
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Length (L)
- 1.2m
- Longitudinal Change After Shrinkage
- +5 %/-15 %
- Recov. ∅ d max.
- 6.0mm
- Supplied ∅ D min.
- 24.0mm
- Thickness of Adhesive (TA) nom.
- 0.90mm
- Wall (WT)
- 2.20mm
