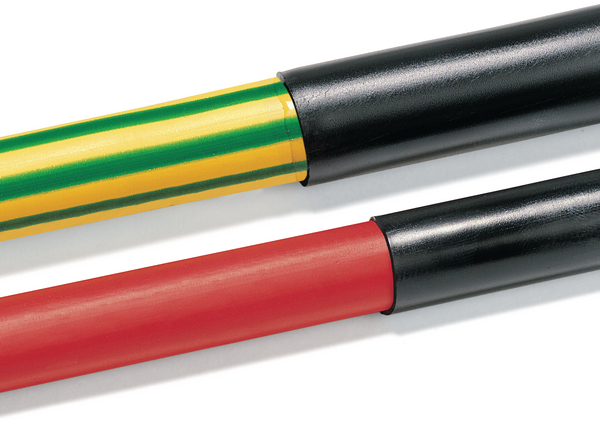

HellermannTyton 315-55100

Base Data

• Application 2
  • Applications - TR27 is used in applications where toxic emissions evolved in a fire must be minimised, e.g. for heavily populated buildings or savety sensitive areas like tunnels, hospitals, schools, theatres, mass transit vehicles and computer centres. The SR27 version is ideal for smoke sensitive areas such as underground railway, marine, offshore and aerospace work.
• Application Tool
  • H5002, H5004, E4500
• Behaviour at Heat Shock
  • not cracking, not dripping, not fluid
• Colour
  • Black (BK)
• Features and Benefits
  • TR27 is a thin-wall, halogen free tubing which is self-extinguishing with flame retardant properties. This tubing is available in adhesive lined and unlined. TR27 is used in applications where toxic emissions during a fire must be minimised, e.g. for heavily populated buildings or savety sensitive areas such as tunnels, hospitals, schools, theatres, mass transit vehicles and computer centres.
• Heat Shock Test
  • 4h/150°C
• Package Quantity per
  • metre
• Pack Cont.
  • 60m
• PART DESCRIPTION
  • TR27-50.8/25.4-PO-X-BK
• Printable (Yes/No)
  • Yes
• Product Family
  • TR27
• Product Group
  • Heat shrinkable tubing 2:1 – Flame retardant
• Short Description
  • Heat Shrinkable Tubing 2:1 flame retardant halogen free 50.8/25.4 black
• Shrink Ratio
  • 2:1
• Size
  • 2"
• Variant
  • Thin-Wall
• With inner glue (Yes/No)
  • No

Logistics and Packaging

• EAN / GTIN
  • 4031026224695
• Packaging 1 - Height (m)
  • 0.24m
• Packaging 1 - Length (m)
  • 0.39m
• Packaging 1 - Qty
  • 60
• Packaging 1 - Type
  • reel
• Packaging 1 - Volume (m³)
  • 0.0365m³
• Packaging 1 - Weight (kg)
  • 12.28kg
• Packaging 1 - Width (m)
  • 0.39m
• Packaging 3 - Height (m)
  • 0.26m
• Packaging 3 - Length (m)
  • 0.405m
• Packaging 3 - Qty
  • 60
• Packaging 3 - Type
  • carton
• Packaging 3 - Volume (m³)
  • 0.0416m³
• Packaging 3 - Weight (kg)
  • 12.78kg
• Packaging 3 - Width (m)
  • 0.395m
• Packaging 4 - Height (m)
  • 1.185m
• Packaging 4 - Length (m)
  • 1.2m
• Packaging 4 - Qty
  • 960
• Packaging 4 - Type
  • pallet
• Packaging 4 - Volume (m³)
  • 1.138m³
• Packaging 4 - Weight (kg)
  • 225.48kg
• Packaging 4 - Width (m)
  • 0.8m
• Reel Length
  • 60.0m
• Weight
  • 12.28kg

Material and Specifications

• Dielectric Strength
  • 15 kV/mm according to IEC 684 P2
• Elongation at break
  • 200%
• ELV compliant (Article 4 - 2)
  • YES
• EN 45545-2 Results
  • R22 HL3, R23 HL3
• Flammability
  • Limited Fire Hazard, halogen free, low generation of toxic gases and corrosive acid, low smoke generation
• Halogenfree
  • Yes
• Hazardous good
  • No
• Limited Fire Hazard
  • Yes
• Material
  • Polyolefin, cross-linked (PO-X)
• Min. Shrink Temperature - °C
  • +115 °C
• Operating Temperature - °C
  • -40 °C to +105 °C
• Specifications
  • DEF STAN 59-97 Type 8, DIN EN 45545-2 (08/2013)
• Tensile Strength
  • 7MPa
• Volume Resistance
  • 10¹³ Ω cm
• Water Absorption
  • 1.0%

More Information

• ETIM 6.0
  • EC000217
• ETIM 7.0 Key
  • EC000217

Product Dimensions

• Longitudinal Change After Shrinkage
  • +5 %/-10 % max.
• Recov. ∅ d max.
  • 25.4mm
• Supplied ∅ D min.
  • 50.8mm
• Wall (WT)
  • 1.14mm
