HellermannTyton 315-13003
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

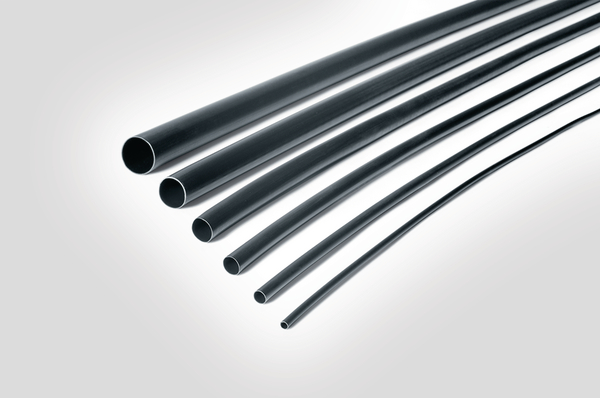

TA37 shrink tubing has a low smoke index and excellent flame retardant properties to meet strict fire security standards in electrical insulation.Heat shrinkable tubing 3:1 – Flame retardant
HellermannTyton 315-13003 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, E4500
- Behaviour at Heat Shock
- not fluid, not dripping, not cracking
- Colour
- Black (BK)
- Features and Benefits
- TA37 shrink tubing has a low smoke index and excellent flame retardant properties to meet strict fire security standards in electrical insulation.
- Heat Shock Test
- 4h/225°C
- Package Quantity per
- pcs.
- Pack Cont.
- 125
- PART DESCRIPTION
- TA37 9-3-PO-X-BK
- Printable (Yes/No)
- No
- Product Family
- TA37 – thin wall adhesive lined
- Product Group
- Heat shrinkable tubing 3:1 – Flame retardant
- Short Description
- Heat Shrinkable Tubing Thin Wall with Adhesive Liner 3:1 L=1.2m 9/31 black
- Shrink Ratio
- 3:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- Yes
Logistics and Packaging
- EAN / GTIN
- 4031026444659
- Packaging 1 - Height (m)
- 0.26m
- Packaging 1 - Length (m)
- 1.28m
- Packaging 1 - Qty
- 1
- Packaging 1 - Type
- bag
- Packaging 1 - Volume (m³)
- 0.04659m³
- Packaging 1 - Weight (kg)
- 0.023kg
- Packaging 1 - Width (m)
- 0.14m
- Packaging 3 - Height (m)
- 0.26m
- Packaging 3 - Length (m)
- 1.28m
- Packaging 3 - Qty
- 125
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0466m³
- Packaging 3 - Weight (kg)
- 3.375kg
- Packaging 3 - Width (m)
- 0.14m
- Weight
- 0.023kg
Material and Specifications
- Adhesive
- Hot melt adhesive
- Dielectric Strength
- 11.8 kV/mm
- Elongation at break
- 100%
- ELV compliant (Article 4 - 2)
- YES
- EN 45545-2 Results
- R22 HL3, R23 HL3
- Flammability
- self-extinguishing
- Halogenfree
- Yes
- Hazardous good
- No
- Limited Fire Hazard
- Yes
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +150 °C
- Operating Temperature - °C
- -40 °C to +105 °C
- Softening Point Adhesive
- +85 °C
- Specifications
- conforms to BS6853, conforms to LUL E1042:A6, DIN EN 45545-2 (08/2013)
- Tensile Strength
- 10.4MPa
- UL Listed (US and Canada)
- No
- UL Recognized (US and Canada)
- No
- Volume Resistance
- 10¹² Ω cm
- Water Absorption
- 1.0%
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Length (L)
- 1.2m
- Longitudinal Change After Shrinkage
- +5 %/-10 %
- Recov. ∅ d max.
- 3.0mm
- Supplied ∅ D min.
- 9.0mm
- Wall (WT)
- 1.3mm
