HellermannTyton 311-90249
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

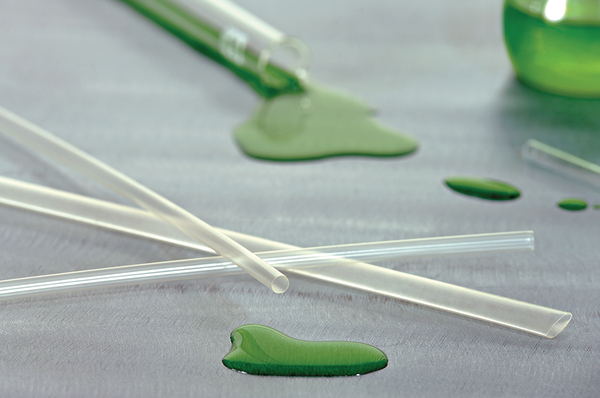

Typical applications of this translucent tubing are where high-temperature performance is required. Also very suitable for applications that ask for visual inspection of covered components, or if low friction surface is needed. TK29 is also used as oil stop for energy cables.
This thin walled, translucent heat shrink tubing is often used for chemical applications.Heat Shrinkable Tubing 2:1 - PVDF
This thin walled, translucent heat shrink tubing is often used for chemical applications.Heat Shrinkable Tubing 2:1 - PVDF
HellermannTyton 311-90249 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Transparent (CL)
- Package Quantity per
- reel
- Pack Cont.
- 150m
- PART DESCRIPTION
- TK29-2.4/1.2-PVDF-CL
- Product Family
- TK29
- Product Group
- Heat Shrinkable Tubing 2:1 - PVDF
- Shrink Ratio
- 2:1
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026223933
- Packaging 1 - Height (m)
- 0.4m
- Packaging 1 - Length (m)
- 0.4m
- Packaging 1 - Qty
- 150
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.096m³
- Packaging 1 - Weight (kg)
- 1.8kg
- Packaging 1 - Width (m)
- 0.6m
- Reel Length
- 150.0m
- Weight
- 1.8kg
Material and Specifications
- Dielectric Strength
- ≥ 30 kV/mm min. according to ASTM D2171
- Elongation at break
- ≥350%
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 224 VW-1
- Halogenfree
- No
- Hazardous good
- No
- Insulation Class
- F (VDE 0530)
- Material
- Polyvinylidene Fluoride (PVDF)
- Min. Shrink Temperature - °C
- +150 °C
- Operating Temperature - °C
- -55 °C to +175 °C
- Specifications
- ANSI/UL 224, SAE-AMS-DTL-23053/18 class1
- Tensile Strength
- 30MPa
- UL-File Number
- E198024
- UL OCD link
- YDQS2.E198024
- Volume Resistance
- 10¹³ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Longitudinal Change After Shrinkage
- +/-10 % max
- Recov. ∅ d max.
- 1.2mm
- Supplied ∅ D min.
- 2.4mm
- Tube Shape
- Round
- Wall (WT)
- 0.25mm
