Description

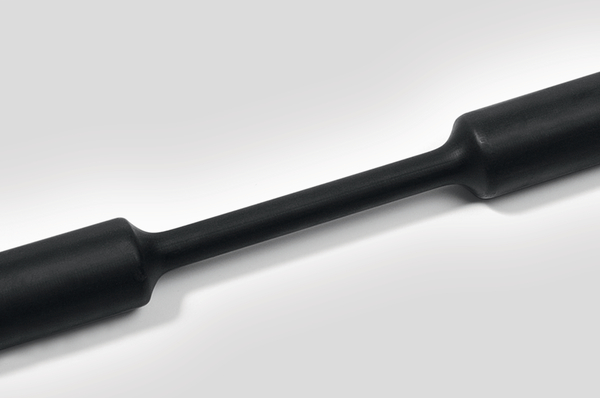

TFN21 is suitable for a wide range of applications like electrical insulations, mechanical protection and cable bundling.Heat shrinkable tubing 2:1 - flexible and coloured
HellermannTyton 309-61007 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Colour
- Black (BK)
- Package Quantity per
- reel
- Pack Cont.
- 30m
- PART DESCRIPTION
- TFN21 12.7/6.4-PO-X-BK
- Printable (Yes/No)
- Yes
- Product Family
- TFN21
- Product Group
- Heat shrinkable tubing 2:1 - flexible and coloured
- Short Description
- Heat Shrinkable Tubing 2:1 thin-wall 12.7/6.4 black on 30m reel
- Shrink Ratio
- 2:1
- Size
- 1/2"
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026536712
- Packaging 1 - Height (m)
- 0.03m
- Packaging 1 - Length (m)
- 0.385m
- Packaging 1 - Qty
- 30
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.00445m³
- Packaging 1 - Weight (kg)
- 0.9kg
- Packaging 1 - Width (m)
- 0.385m
- Packaging 3 - Height (m)
- 0.42m
- Packaging 3 - Length (m)
- 0.405m
- Packaging 3 - Qty
- 390
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0689m³
- Packaging 3 - Weight (kg)
- 12.2kg
- Packaging 3 - Width (m)
- 0.405m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 1560
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 69.8kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 30m
- Weight
- 0.9kg
Material and Specifications
- Dielectric Strength
- 20 kV/mm
- Elongation at break
- 600%
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- UL 224 VW-1
- Halogenfree
- No
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +100 °C
- Operating Temperature - °C
- -55 °C to +125 °C
- Specifications
- ANSI/UL 224
- Tensile Strength
- 14MPa
- UL-File Number
- E143529
- UL OCD link
- YDPU8.E143529 YDPU2.E143529
- UL Recognized (US and Canada)
- Yes
- Volume Resistance
- 10¹⁴ Ω cm
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
- UNSPSC Key
- 39121723
Product Dimensions
- Longitudinal Change After Shrinkage
- +/-5 %
- Recov. ∅ d max.
- 6.4mm
- Supplied ∅ D min.
- 12.7mm
- Wall (WT)
- 0.62mm
