HellermannTyton 309-35083
Free Shipping
1 Year Warranty
A+ Rated On The BBB
10% Off First Order
Based In The USA
Description

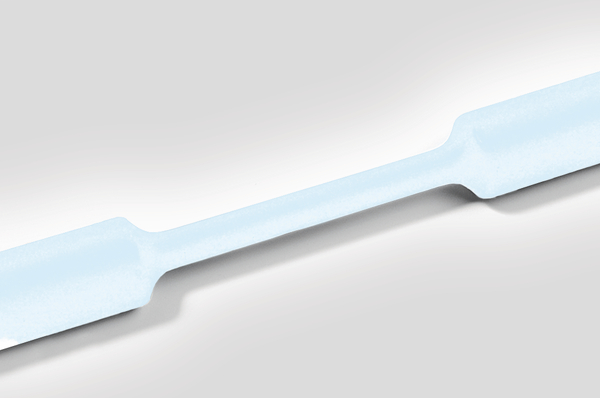

Protects wire and cable markers subject to abuse, while permitting inspectability of each item covered. Protects electronic components while permitting their identification and inspection.Heat shrinkable tubing 2:1 - flexible and transparent
HellermannTyton 309-35083 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Application Tool
- H5002, H5004, E4500
- Behaviour at Heat Shock
- not dripping, not fluid, not cracking
- Behaviour At Low Temperature
- not cracking
- Colour
- Transparent (CL)
- Heat Aging Test
- 168h/175°C
- Heat Shock Test
- 4h/250°C
- Minimum Elongation At Heat Aging
- 250%
- Package Quantity per
- reel
- Pack Cont.
- 60m
- PART DESCRIPTION
- TF24-50.8/25.4-PO-X-CL
- Printable (Yes/No)
- No
- Product Family
- TF24
- Product Group
- Heat shrinkable tubing 2:1 - flexible and transparent
- Short Description
- Heat Shrinkable Tubing 2:1 flexible 50.8/25.4 transparent
- Shrink Ratio
- 2:1
- Size
- 2"
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026223551
- Packaging 1 - Height (m)
- 0.24m
- Packaging 1 - Length (m)
- 0.39m
- Packaging 1 - Qty
- 60
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.0365m³
- Packaging 1 - Weight (kg)
- 6.06kg
- Packaging 1 - Width (m)
- 0.39m
- Packaging 3 - Height (m)
- 0.265m
- Packaging 3 - Length (m)
- 0.4m
- Packaging 3 - Qty
- 60
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0424m³
- Packaging 3 - Weight (kg)
- 6.56kg
- Packaging 3 - Width (m)
- 0.4m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 1440
- Packaging 4 - Type
- pallet
- Packaging 4 - Weight (kg)
- 178.44kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 60.0m
- Weight
- 6.06kg
Material and Specifications
- Designation as per VG-Norm
- VG 95343 T05 B 012 M
- Dielectric Strength
- 30 kV/mm
- Elongation at break
- 450 %
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- not flame retardant
- Halogenfree
- Yes
- Hazardous good
- No
- Limited Fire Hazard
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +110 °C
- Nato number
- D8527
- Operating Temperature - °C
- -55 °C to +135 °C
- Specifications
- DEF STAN 59-97 Type 2B, SAE - AMS - DTL-23053/5 Class 2, VG 95343-5:2006-06
- Tensile Strength
- 20MPa
- Volume Resistance
- 10¹⁵ Ω cm
- Water Absorption
- 0.2%
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Longitudinal Change After Shrinkage
- +/-5 % max.
- Recov. ∅ d max.
- 25.4mm
- Supplied ∅ D min.
- 50.8mm
- Wall (WT)
- 1.14mm
