Description

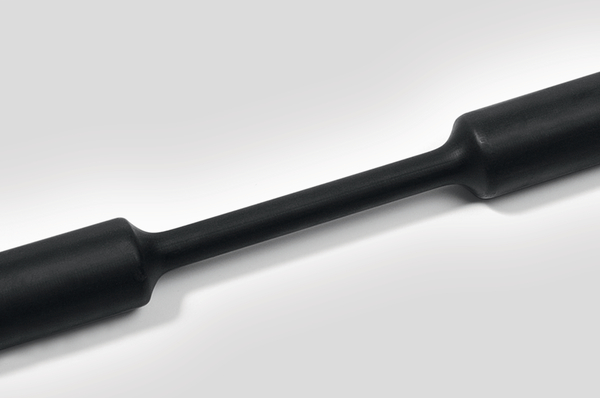

Due to it's versatility TF21 is suitable for a wide range of applications like electrical insulations, mechanical protection and marking.Heat shrinkable tubing 2:1 - flexible and coloured
HellermannTyton 309-10950 is now available from Williams Automation.
If you need a specific firmware version or series for this item, please call or email us with your request. We can also provide specifications and/or a data sheet for this item upon request. Please call or email us if you need one.
We offer Overnight shipping for most items listed on our website. Please get in touch with us to confirm whether the product can ship overnight on the day of your order. Cutoff times are typically 2-3 PM EST. Lead times can range from 1 to 4 business days.
Call (803) 761-7027 if you have any questions about availability, or email us at sales@williamsautomation.com.
Base Data
- Behaviour at Heat Shock
- not refractive, not fluid, not dripping
- Colour
- Black (BK)
- Heat Aging Test
- 168h/175°C
- Heat Shock Test
- 4h/250°C
- Minimum Elongation At Heat Aging
- 420%
- Package Quantity per
- reel
- Pack Cont.
- 150m
- PART DESCRIPTION
- TF21-9.5/4.8-PO-X-BK
- Printable (Yes/No)
- Yes
- Product Family
- TF21
- Product Group
- Heat shrinkable tubing 2:1 - flexible and coloured
- Short Description
- Heat Shrinkable Tubing 2:1 flexible 9.5/4.8 black
- Shrink Ratio
- 2:1
- Size
- 3/8"
- Variant
- Thin-Wall
- With inner glue (Yes/No)
- No
Logistics and Packaging
- EAN / GTIN
- 4031026222271
- Packaging 1 - Height (m)
- 0.245m
- Packaging 1 - Length (m)
- 0.39m
- Packaging 1 - Qty
- 150
- Packaging 1 - Type
- reel
- Packaging 1 - Volume (m³)
- 0.03726m³
- Packaging 1 - Weight (kg)
- 3.15kg
- Packaging 1 - Width (m)
- 0.39m
- Packaging 2 - Type
- carton
- Packaging 3 - Height (m)
- 0.265m
- Packaging 3 - Length (m)
- 0.4m
- Packaging 3 - Qty
- 150
- Packaging 3 - Type
- carton
- Packaging 3 - Volume (m³)
- 0.0424m³
- Packaging 3 - Weight (kg)
- 3.65kg
- Packaging 3 - Width (m)
- 0.4m
- Packaging 4 - Height (m)
- 1.204m
- Packaging 4 - Length (m)
- 1.2m
- Packaging 4 - Qty
- 3600
- Packaging 4 - Type
- pallet
- Packaging 4 - Volume (m³)
- 1.156m³
- Packaging 4 - Weight (kg)
- 108.6kg
- Packaging 4 - Width (m)
- 0.8m
- Reel Length
- 150.0m
- Weight
- 3.15kg
Material and Specifications
- CSA Certified
- Yes
- Dielectric Strength
- 37 kV/mm
- Elongation at break
- 400 %
- ELV compliant (Article 4 - 2)
- YES
- Flammability
- ASTM D876
- Halogenfree
- No
- Hazardous good
- No
- Material
- Polyolefin, cross-linked (PO-X)
- Min. Shrink Temperature - °C
- +90 °C
- Operating Temperature - °C
- -55 °C to +135 °C
- Specifications
- ANSI/UL 224, C22.2 no. 198.1-99, JAR/FAR 25.853, SAE - AMS - DTL-23053/5 Class 1
- Tensile Strength
- 14MPa
- UL-File Number
- E143529
- UL Recognized (US and Canada)
- Yes
More Information
- ETIM 6.0
- EC000217
- ETIM 7.0 Key
- EC000217
Product Dimensions
- Longitudinal Change After Shrinkage
- +/-5 %
- Recov. ∅ d max.
- 4.8mm
- Supplied ∅ D min.
- 9.5mm
- Wall (WT)
- 0.64mm
